[User Guide] Anderic 63T-AC8.3T Universal Ceiling Fan Remote Control Kit Installation Instructions

General Information

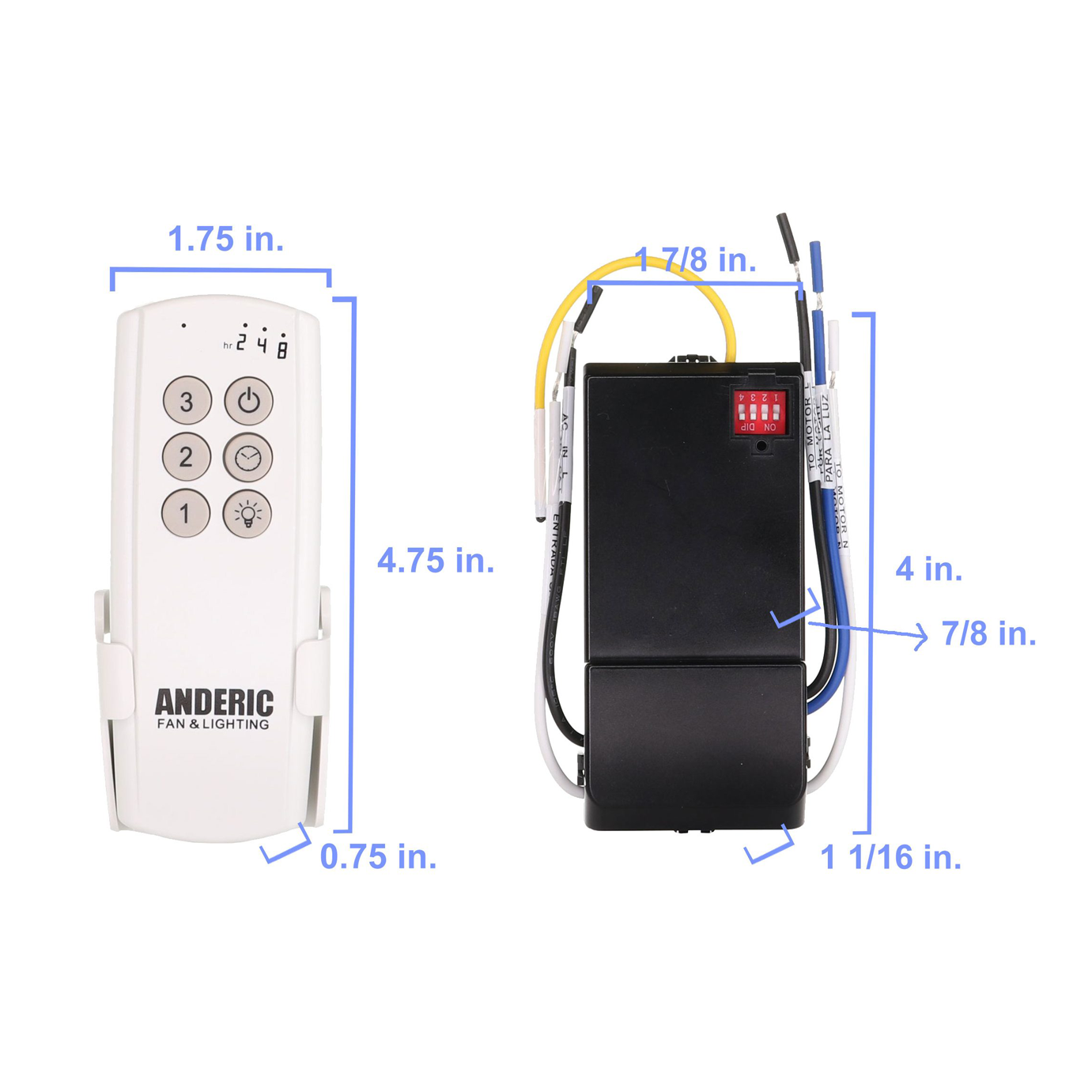

The Anderic 63T-AC8.3T Kit's remote controller is designed to control the speed of your ceiling fan and the brightness of your lights separately. Four buttons (HIGH, MEDIUM, LOW, and OFF) control the fan’s speed and the off setting.

The light dimmer button controls the light brightness, dimmer, and off settings.

The blue indicator on the remote will light when one of the six buttons is pressed.


Cautions:

  • A qualified electrician should install it.
  • Please ensure there is sufficient space in the fan canopy to accommodate the receiver before ordering.
  • If your fan is an old version and has to PULL CHAINS to get the correct speeds and function, please turn PULL CHAINS to the max speed position and turn the light on (if any).

Pairing Process

This unit has 16 different code combinations. To set the codes, perform the following steps:

  1. Setting the codes on the remote:
    1. Remove the battery cover. Press firmly on the arrow and slide the battery cover off.
    2. Slide the code switches to your preferred position, either up or down. The factory setting is all up; we suggest not using this position. Use a small screwdriver or ballpoint pen to slide firmly up or down (Figure 1).
  2. Setting the codes on the receiver:
    1. Slide codes switch on the receiver to match those of the remote control (Figure 2)
    2. Replace the battery cover on the remote.

Installing the receiver

WARNING: HIGH VOLTAGE! Disconnect power by removing the fuse or switching off the circuit breaker. Do not use solid-state fans. The electrical wire must meet all local and national electrical code requirements. Supply for fan must be 110/120 volt, 60Hz—maximum fan motor amps: 1.0, Maximum light watts: 190 incandescent or LED. Otherwise, power can cause severe injury or death.


  1. Remove power from the circuit.
  2. Remove the ceiling fan canopy from the mounting bracket.
  3. Disconnect the existing wiring between the ceiling fan and the electrical junction box.

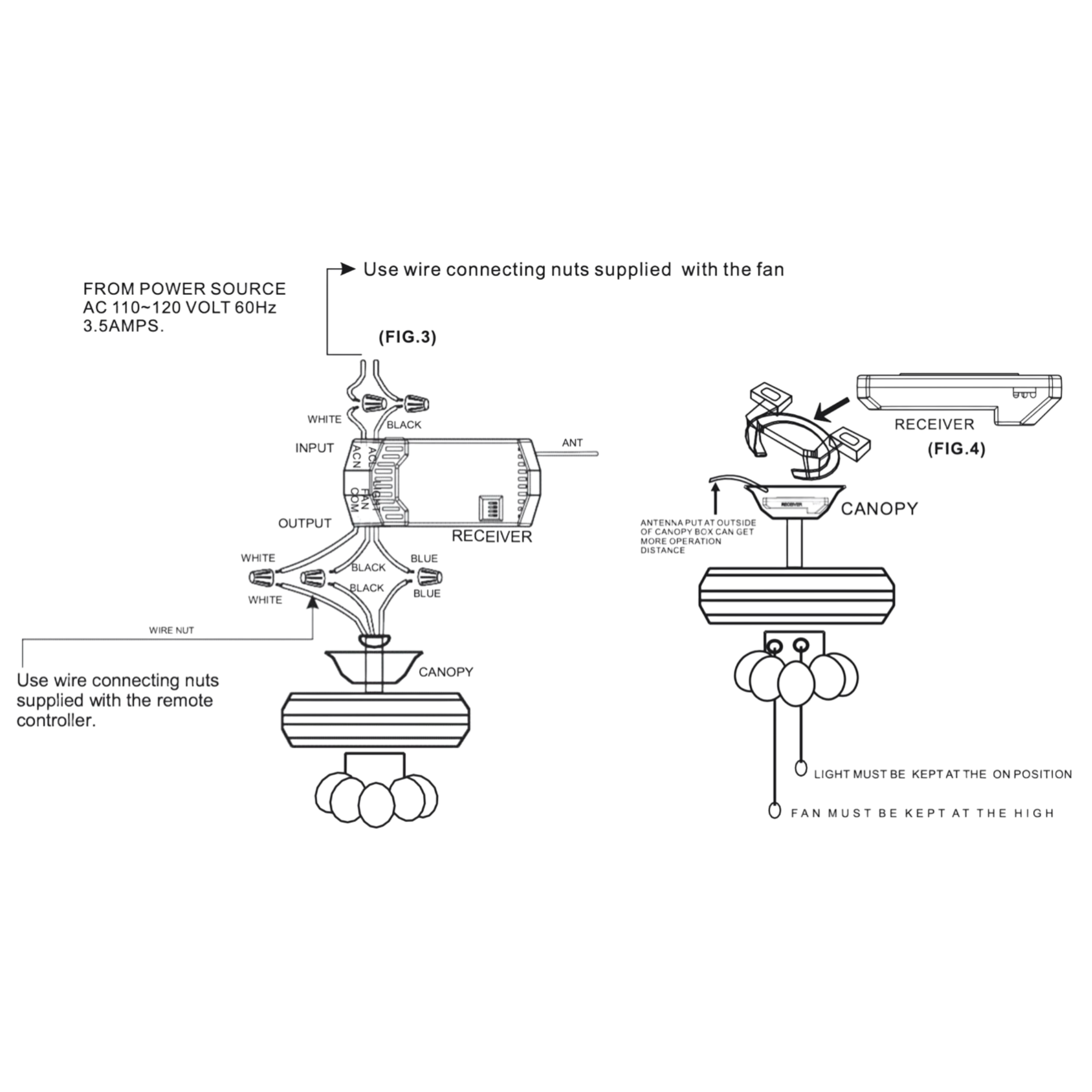

  4. Make connections using the wire nuts supplied: If other fans or supply wires are a different color, have this unit installed by a qualified licensed electrician.
    1. Green fan wire .... Bare supply wire
    2. Black receiver wire (AC IN L) .... Black wire from the ceiling
    3. White receiver wire (AC IN N) .... White wire from the ceiling
    4. White receiver wire (TO MOTOR N) .... White fan wire
    5. Black receiver wire (TO MOTOR L) .... Black fan wire
    6. Blue receiver wire (FOR LIGHT) .... Blue fan wire
  5. Push all connected wires up into the junction box.
  6. Lay the brown antenna wire on top of the receiver and put the receiver into the mounting bracket.
  7. Reinstall the canopy on the mounting bracket.
  8. Restore power.

Operating the remote

  1. Install two AAA batteries (not included). Note: To prevent damage to the remote, remove the battery when storing.
  2. Store the remote away from excessive heat or humidity.
  3. This remote control is equipped with 16 code combinations.
  4. Operating the buttons on the front of the remote is as follows:
    • "1" key - Press to adjust the fan speed to HIGH.
    • "2" key - Press to adjust the fan speed to MEDIUM.
    • "1" key - Press to adjust the fan speed to LOW.
    • "⏻" Power key - Press to cycle power to the fan.
    • "🕙" Timer key - Press to toggle between 2, 4, or 8 hour light delay, indicated by the LED at the top of the remote.
    • "💡" Light key - Press to toggle the light on and off. Press and hold to cycle through the brightness levels of the light; release when the desired brightness is reached. The receiver will remember the status of the light brightness.

Installing the wall mount holder

Place it in an accessible area of your home and screw the remote-control holder into the wall using the two screws provided; slide the remote into the holder for easy storage.

Troubleshooting Guide

The remote fails to operate.

  • Is there power to the receiver?
  • Is the receiver wired correctly?
  • Are the drawstrings (if applicable) set to High speed, and the light in the on position?
  • Is the wall switch turned on?
  • Are the batteries installed correctly and have a reasonable charge?
  • Are the code switches set at the same positions in both the remote and receiver?

The light or fan is turning on and off randomly.

  • The issue may be due to possible interference from or to other remote controls, such as garage door openers, car alarms, or security systems. You can change the code combination on your remote and receiver.

The remote will not operate at a distance.

  • Try placing the brown antenna wire on the receiver higher through the ceiling/outside the junction box.

Does the wireless remote control kit fit my ceiling fan perfectly?

  • It is compatible with most AC fans but does not work for DC fans.
  • Compatible with Hunter/Harbor/Honeywell and any other brand in the market
  • Compatible with ceiling fans with light, ceiling fans without light, and other AC fans

Can I use one remote to control two fans?

  • Yes, you can use one remote to control two fans. Match the dip switches of the receiver to those of the other fan.

Can I use two remotes to control one fan?

  • Yes, you can use two remotes to control one fan. Match the dip switches of the remotes.

I have two ceiling fans in adjacent rooms. If I buy 2 of these remote control kits, will they interfere with each other?

  • No, change the code for each kit by setting the dip switches differently for each fan; it works individually.

Does it support the dimming function?

  • Yes, hold the LIGHT key to toggle dimming. A quick press toggles the feature on or off. It works well with LED bulbs, incandescent, and CFL.

Does it work with fans that have no light kits?

  • Yes, the light and fan are controlled individually. There is no need to connect the blue light wire (live wire for light) from the receiver. Pressing the LIGHT key on the remote will have no effect.

NOTICE

Your ceiling fan and light kit assembly must meet the following requirements:

  1. Not for use with solid-state fans.
  2. Not for use with DC fans.
  3. Electrical rating: 110/120v 60Hz 3.5A
  4. MAX. Motor amps: 1.0
  5. MAX. Light watts: 190 (incandescent or LED)

WARNING

TO REDUCE SHOCK RISK, THIS FAN MUST BE INSTALLED WITH A WALL CONTROL/SWITCH. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.


SUPPORT

For support, please go to our website at Anderic.com.


LEGAL

Anderic is a registered trademark of Dan’s Electronics Etc., Inc. All rights reserved.
