[User Guide] RRTRA049G1M Pairing Instructions

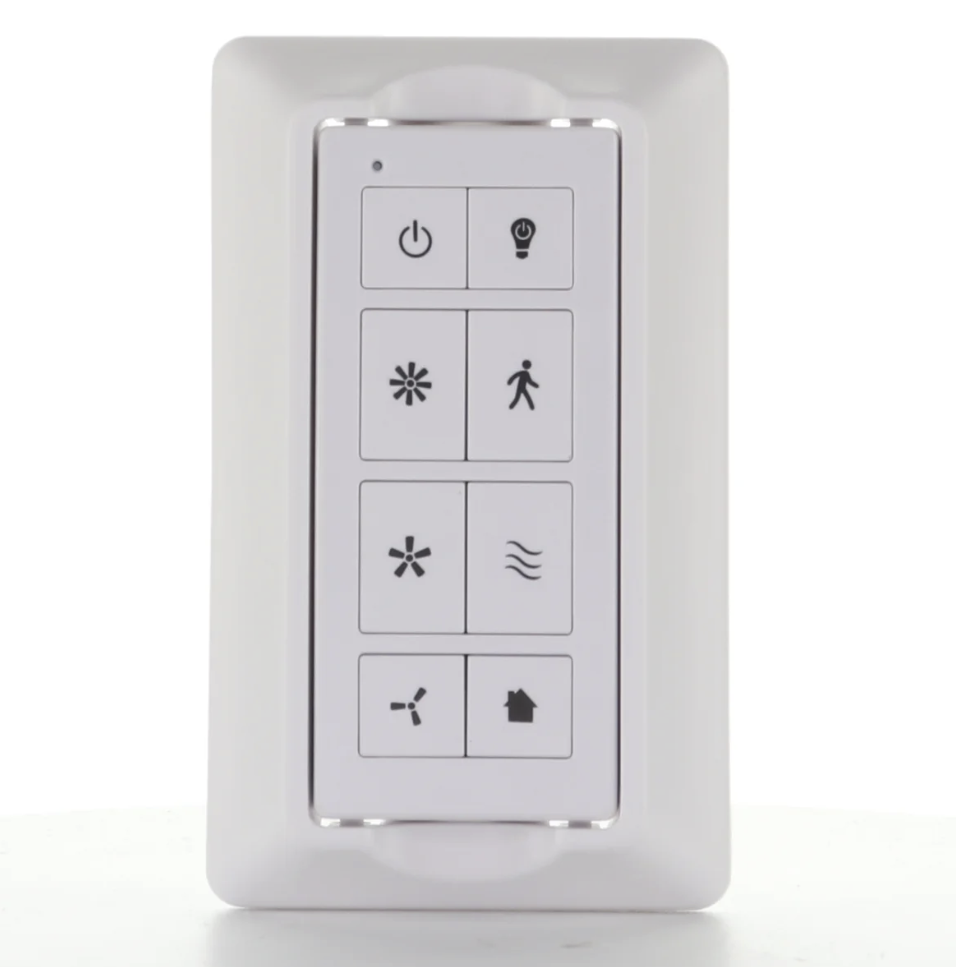

The Anderic TRA049G1M (RRTRA049G1M) is a replacement ceiling fan remote designed for Harbor Breeze Summersville collection fans. Operating exclusively on the 304.25 MHz frequency, it works with the MRAC04S1M-LD-F0 receiver and Harbor Breeze 4L000015190 kit. This remote comes with a wall mount bracket and requires two AAA batteries (sold separately).

Will replace: 2AQZU-18052 | 304 MHz, 2AQZU-18007 | 304.25 MHz

WORKS Harbor Breeze Summersville collection Ceiling Fans | 4L000015190 (KIT), MRAC04S1M-LD-F0 (RECEIVER)

Replacement remote for Harbor Breeze Summersville collection. Fits items 1098294 and 3856486.

Pairing Instructions

1. Cycle the power to the fan.
2. Within 30 seconds, press and hold the high and low speed buttons on the remote at the same time for 5 seconds.
3. Once complete, the fan will start on low speed with the light off.

Remote Functions

[FAN OFF]

[1] Low Speed

[2] Medium Speed

[3] High Speed

[LIGHT] Press once to power on the light. Press twice to power off the light.

[DELAY] Press to delay the light power.

[BREEZE] Press to randomize fan speeds to mimic wind.

[HOME] Press to randomize the power of the fan and light.
