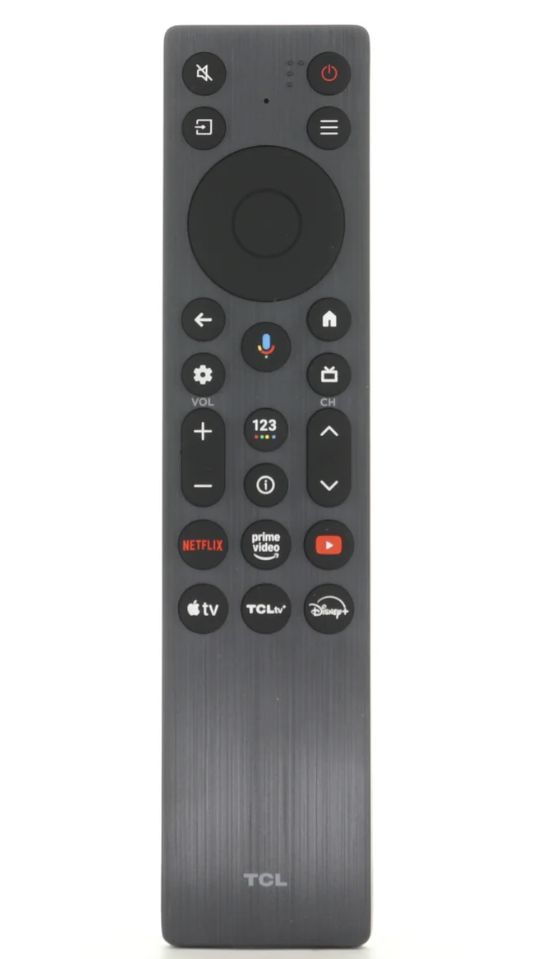

[User Guide] TCL RC923A / FMB1 GOOGLE TV Remote Control
This user guide is for basic pairing instructions for the TCL RC923A
To pair a new voice-enabled remote with your TCL 55QM61K TV, which is likely a Google TV model, follow these steps:
1. Power on your TV manually or using the old remote if available.
2. Insert new batteries into the new remote, ensuring they are correctly aligned.
3. Initiate pairing: Point the new remote towards the TV and simultaneously press and hold the "Home" and "OK" (center dial) buttons for at least 3 to 5 seconds.
4. Watch the TV screen for a message or animation indicating that the pairing process has begun.
5. Wait for confirmation: A message should appear on your TV screen once the remote is successfully connected.
Troubleshooting tips:
• Keep the remote close to the TV (within 3 feet) during the pairing process.
• If pairing fails, try removing and reinserting the batteries, then repeat the pairing steps.
• If you can still navigate the TV with another remote, go to Settings > Remotes & Accessories > Remote control pairing to access the pairing screen directly, and then press the "Home" and "OK" buttons on the new remote.
• Unplug the TV from the power outlet for 30 seconds, plug it back in, and then attempt the pairing process again.
