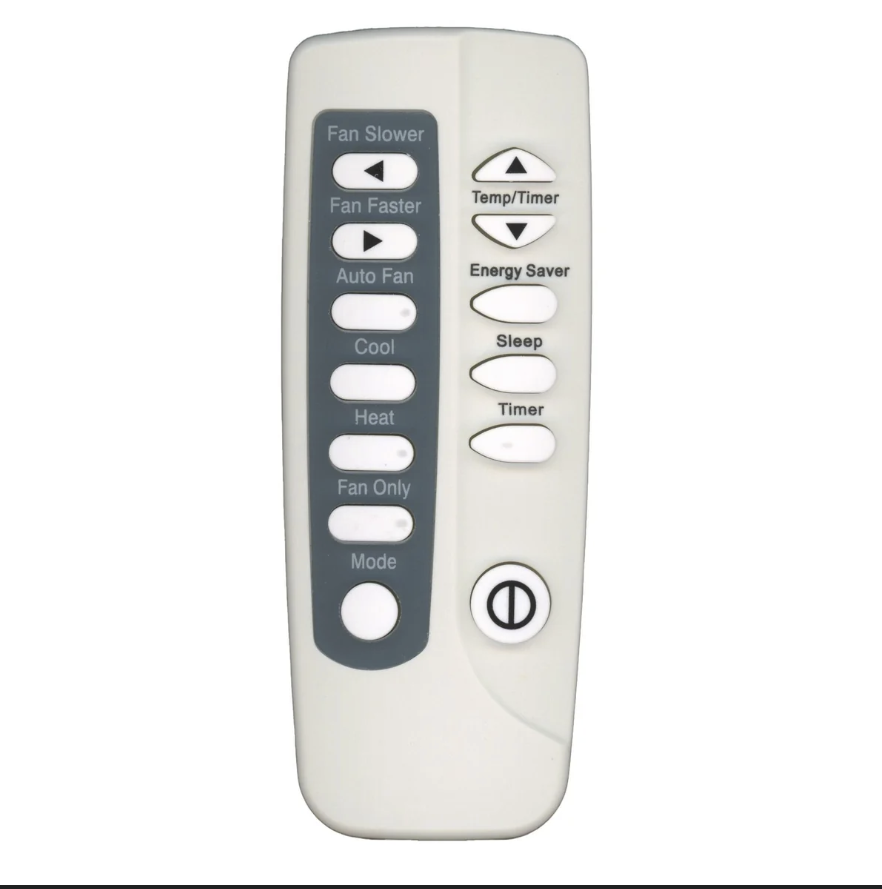

RRFRIG01 | Anderic Window Air Conditioner Remote Control for Frigidaire User Guide

The RRFRIG01 is a direct (not universal) replacement remote for Frigidaire window/wall air conditioners. No programming is required—simply use it with your compatible unit. The remote includes heat function control for units that support heating mode. Full control of cooling and heating settings is available at your fingertips.

Button Functions

• POWER
  • Turns the air conditioner ON or OFF.
• MODE
  • Selects the desired operating mode.
  • Available modes may include Cool, Heat, Dry, Fan, or Auto, depending on the air conditioner model.
• TEMP ▲ / +
  • Increases the set temperature.
  • Press to raise the desired room temperature.
• TEMP ▼ / −
  • Decreases the set temperature.
  • Press to lower the desired room temperature.
• FAN FASTER ▲ / +
  • Adjusts the fan speed up.
  • Available fan speeds may vary depending on the air conditioner model.
• FAN SLOWER▼ / −
  • Adjusts the fan speed down.
  • Available fan speeds may vary depending on the air conditioner model.
• SLEEP
  • Activates the Sleep function on compatible air conditioner models.
  • The unit may automatically adjust operation and temperature settings for more comfortable nighttime use.
• TIMER
  • Sets a timer for the air conditioner.
  • Depending on the model, the timer can be used to schedule the unit to turn ON or OFF.
• ENERGY SAVER
  • Reduces power consumption by cycling the fan off and on along with the compressor
• SWING
  • Controls the louver swing function.
• COOL
  • Selects the cooling function on your air conditioner
• HEAT
  • Selects heating operation on compatible air conditioner models.
  • This function only works on units equipped with a heating function.
• FAN ONLY
  • Operates the air conditioner's fan without activating the cooling function.
  • This mode is useful for circulating air throughout the room when cooling is not needed.
  • The fan speed can typically be adjusted manually using the available fan-speed settings.
• AUTO FAN
  • Automatically adjusts the fan speed based on the room temperature and the selected temperature setting.
  • The fan may operate at a lower speed when the room is close to the desired temperature and increase speed when additional cooling is needed.
  • This feature helps the air conditioner maintain the desired room temperature while adjusting fan operation automatically.
  • Auto Fan availability and operation may vary depending on the specific Frigidaire air conditioner model.

Important Note

The RRFRIG01 is designed as a universal replacement for several Frigidaire air conditioner remotes. Button availability and functionality may vary depending on the specific air conditioner model. Some buttons or functions may not operate if the connected unit does not support that feature. No programming is required for compatible units.
