[User Guide] Anderic UC7067FMRX / UC7067RC /UC7067GMRX Installation and Pairing Instructions
This article applies to the Anderic UC7067FMRX (Jump to instructions) and UC7067GRMX (Jump to Instructions) ceiling fan receivers.

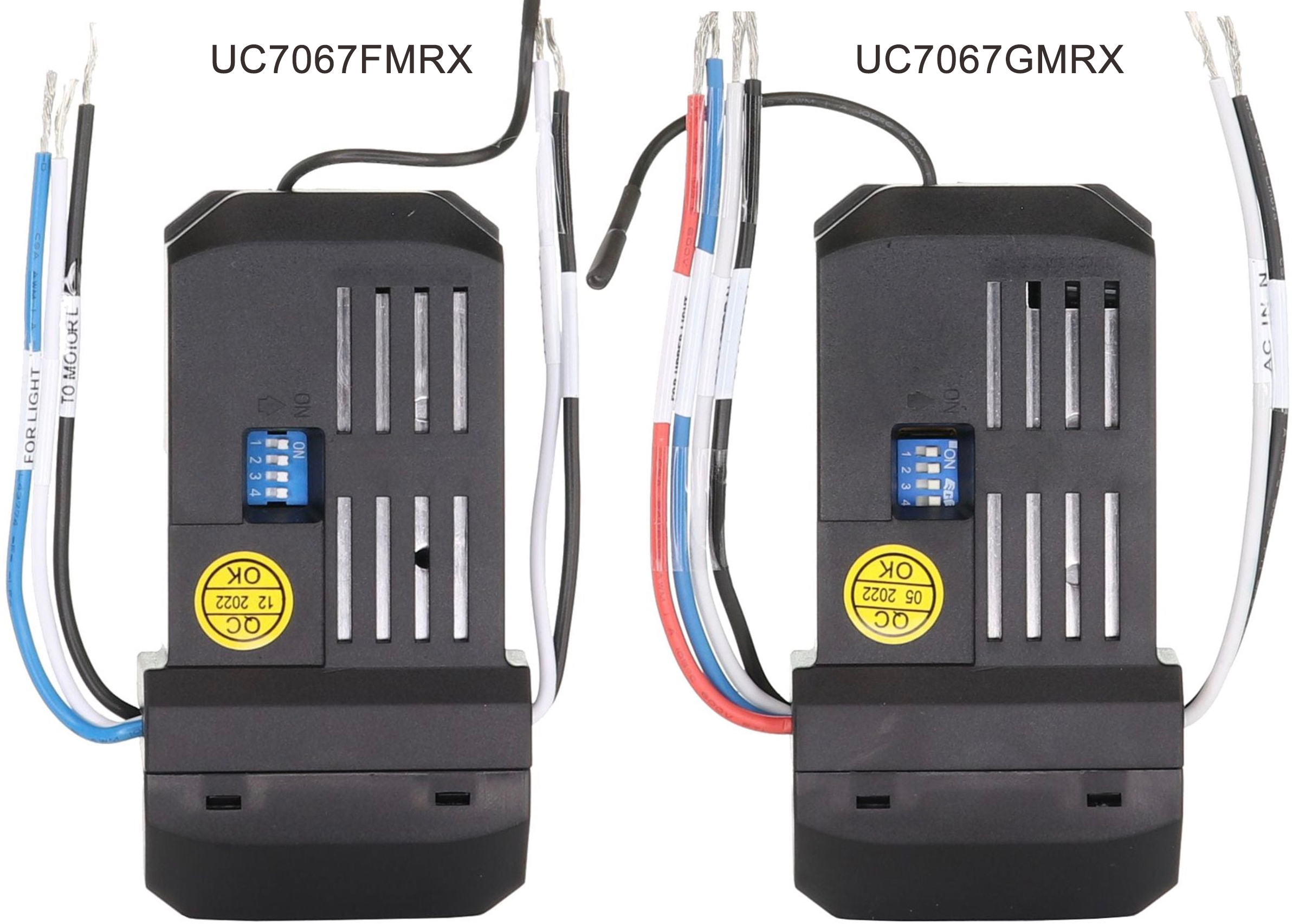

About the UC7067FMRX Receiver
The Anderic UC7067FMRX ceiling fan receiver can work with almost any 3-speed AC fan. The fan can have draw strings, or it can replace an existing receiver of the same style. This receiver is compatible with many different remote controls, operating on the 304 MHz frequency. The compatible models we offer are the
- Anderic RR7079T (fcc id: CHQ7078T)
- Anderic RR7078TR (fcc id: CHQ7078T) (requires a Reversing module, fan must already have it installed),
- Anderic RR7083T (fcc id: CHQ7083T)
- Anderic RR7083TR (fcc id: CHQ7083T) (requires a Reversing module, fan must already have it installed)
- Anderic FAN51T (fcc id: L3HFAN51T)
- Anderic FAN51TB (fcc id: L3HFAN51T)
- Anderic RR7216T (fcc id: CHQ7216T)
- Anderic FAN53TW (fcc id: 2AAZPFAN53T)
- Anderic RR7070T (fcc id: CHQ7070T)
- Harbor Breeze KUJCE9103
Installing the UC7067FMRX Receiver
WARNING: High voltage! Household electrical power can cause serious injury or death. Disconnect the electrical power source to the ceiling fan by removing the fuse or switching off the circuit breaker.
- Remove the ceiling fan canopy from the mounting bracket.
- Disconnect the existing wiring between the ceiling fan and supply at the electrical junction box. If you already have a receiver installation (and are replacing it), please disconnect all wires.

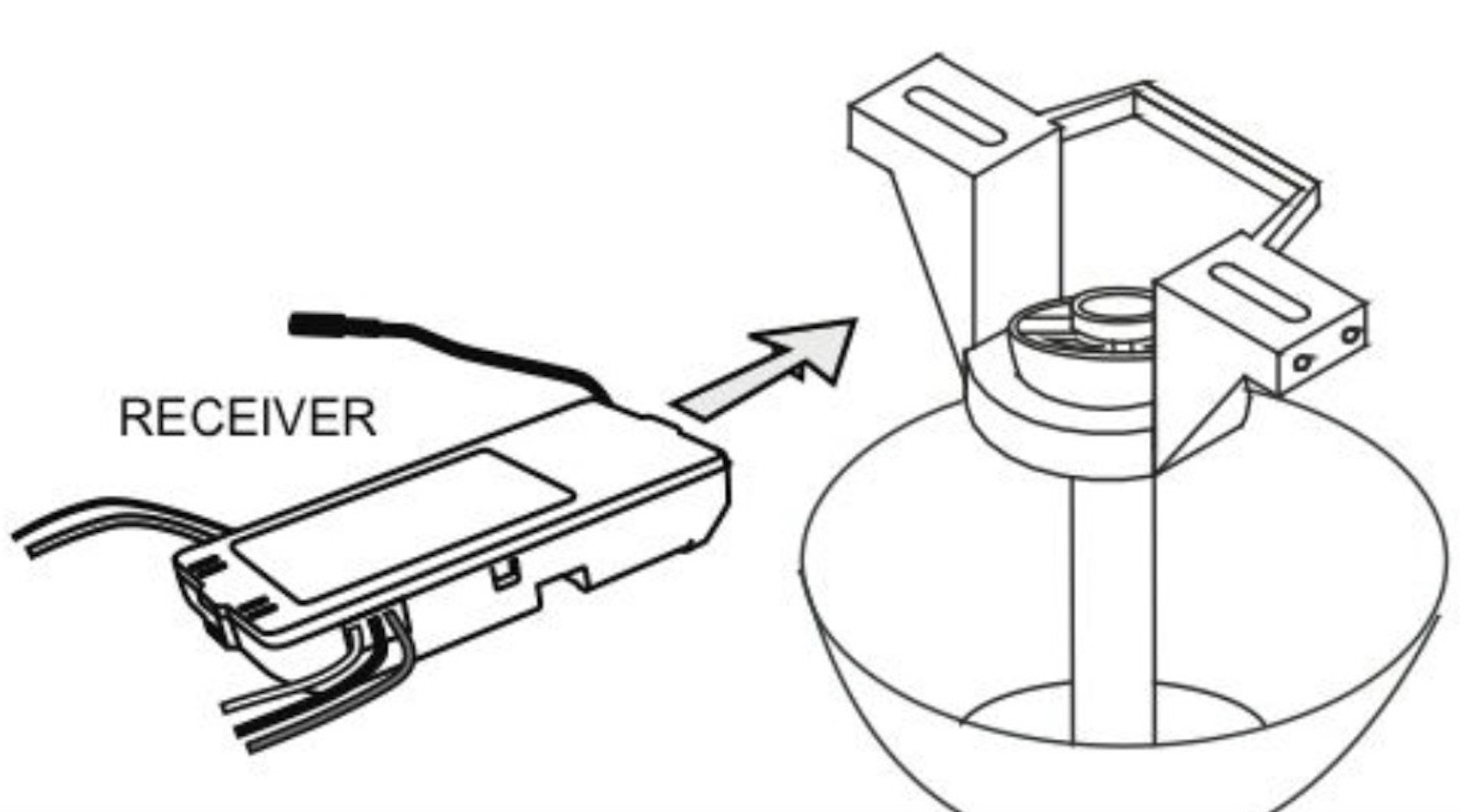

- Lay the black antenna wire on top of the receiver and put the receiver in the mounting bracket (Fig. C).
- Make the following connections using the wire nuts supplied (Fig. D).
| Connect | To |
| Green Fan wire | Bare supply wire |
| Black receiver wire (AC IN L) | Black supply wire |
| White receiver wire (AC IN N) | White supply wire |
| White receiver wire (TO MOTOR N) | White fan wire |
| Black receiver wire (TO MOTOR L) | Black fan wire |
| Blue receiver wire (FOR LIGHT) | Blue lights wire |
- Push all connected wires up into the junction box.
- Reinstall the canopy on the mounting bracket.
- Restore the electrical power.
About the UC7067GMRX Receiver
The Anderic UC7067GMRX ceiling fan receiver is compatible with almost any 3-speed AC fan. The fan can have draw strings, or it can replace an existing receiver of the same style.
- Anderic RR7078TUDL (UC7078T UP / DOWN LIGHT) Remote Control
- Anderic RR7080T (UC7080T) Remote Control
- Anderic RR7083TUDL (UC7083T) Remote Control
- Anderic UC9051T (CHQ9051T) Wall Switch Remote Control
- Anderic UC9051T (wired) Wall Switch Remote Control
Installing the UC7067GMRX Receiver
WARNING: High voltage! Household electrical power can cause serious injury or death. Disconnect the electrical power source to the ceiling fan by removing the fuse or switching off the circuit breaker.
- Remove the ceiling fan canopy from the mounting bracket.
- Disconnect the existing wiring between the ceiling fan and supply at the electrical junction box. If you already have a receiver installation (and are replacing it), please disconnect all wires.
- Lay the black antenna wire on top of the receiver and put the receiver in the mounting bracket.

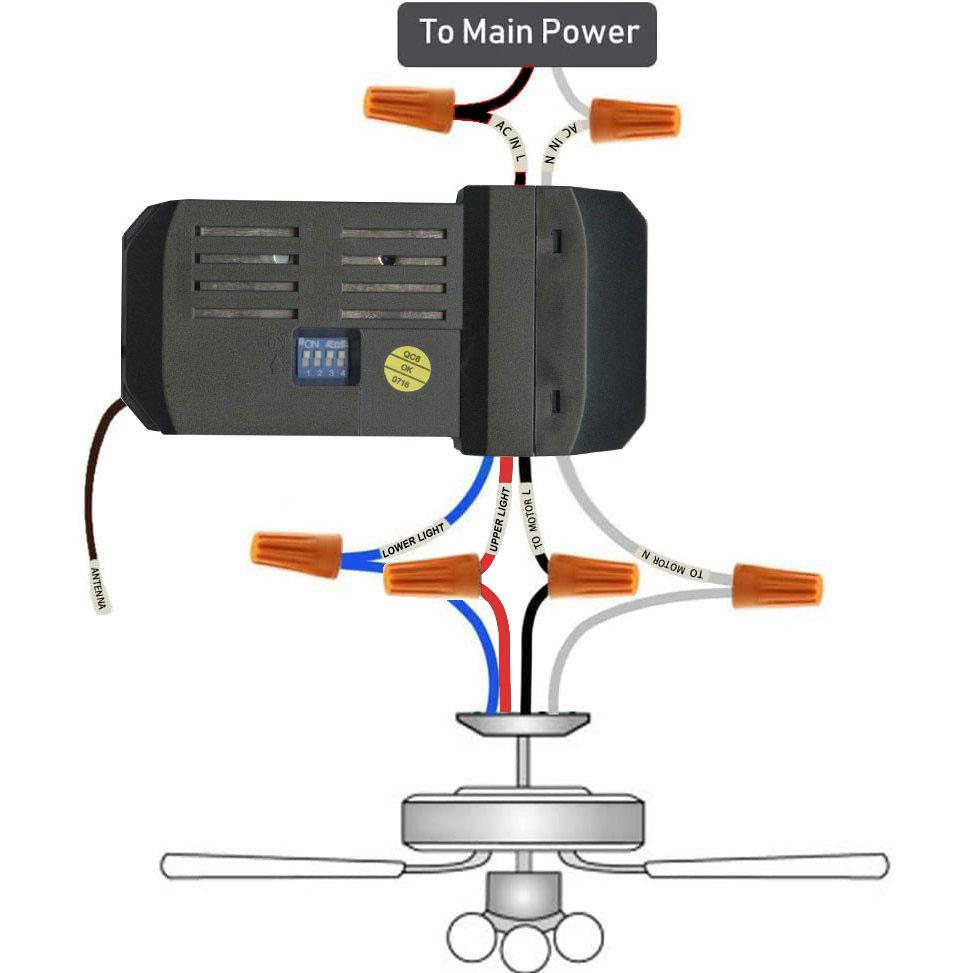

- Make the following connections using the wire nuts supplied.
| Connect | To |
| Black receiver wire (AC IN L) | Black Supply Wire |
| White receiver wire (AC IN N) | White Supply Wire |
| White receiver wire (TO MOTOR N) | White Fan Wire |
| Black receiver wire (TO MOTOR L) | Black Fan Wire |
| Blue receiver wire (FOR DOWN LIGHT) | Blue Fan Wire |
| Red receiver wire (FOR UPPER LIGHT) | Red Fan Wire |
- Push all connected wires up into the junction box.
- Reinstall the canopy on the mounting bracket.
- Restore the electrical power.
