[User Guide] Anderic RRXB01 for Xbox Media Remote Control

This article applies to the Anderic RR-XB-01 universal remote control. This remote is preprogrammed to work with Xbox One ® systems and Vizio/LG TVs (for keys ‘Power,’ ‘Mute,’ & ‘Vol +/-‘). This remote can be programmed to work with any TV via the learning method. Please refer to the “Programming instructions (Via learning)” section for instructions; no code is needed.

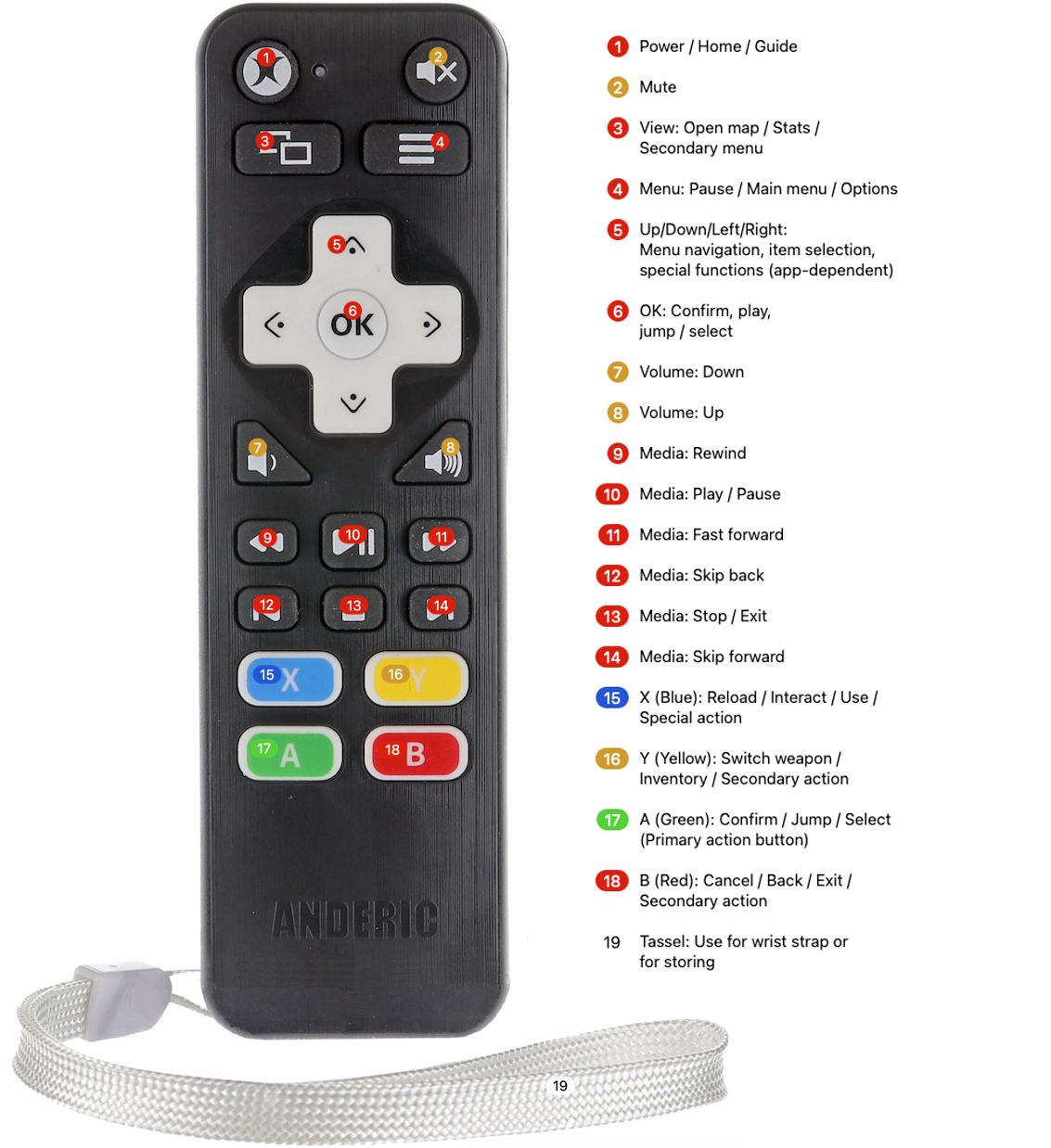

Installing Batteries and Wrist Strap (Diagram)

Programming Instructions (via Learning)

Note: All keys on the RR-XB-01 may be learned. The original remote is needed.

1. Press and hold the [OK] & [A] keys simultaneously for about 3 seconds, the indicator light will light and remain on, release the keys.
2. Press and release the button to be learned on the RRXB01, the indicator light will flash slowly,
3. Point the original remote control head-to-head with the RRXB01, making sure the IR (infra-red light bulb at the top edge of the remote) aligns directly with the lens on the front of the RRXB01 with a distance of about 3cm.
4. Press and hold the key on the original remote that you want the RRXB01 to learn. The indicator light will flash 3 times to confirm and then remain on, waiting for the next entry.
5. Repeat steps 2-4 to learn other keys.
6. Press [OK] & [B] to save and exit, or the remote will automatically save and exit after 20 seconds.

Delete All Learned Keys

Press and hold the [OK] and [X] keys simultaneously for 3 seconds. The indicator light will flash 3 times to confirm. All learned keys have successfully been deleted.
