[User Guide] Anderic RRDYS01 Universal for Dyson Floor Fan and Heater

The Anderic RRDYS01/RRDYS01.2 is a versatile universal remote that may require programming using the provided code sheet. Although it doesn't feature a magnetic backing like the original remotes, it offers a host of impressive features.

This article applies to the following products:

• Anderic RRDYS01 Universal Remote Control for Dyson Fans
• Anderic RRDYS01.2 Universal Remote Control for Dyson Fans

Installing Batteries

Please insert two AAA batteries (sold separately) into the battery compartment behind the battery door on the back of the remote. You may need to remove the screw securing the battery cover. Please ensure that you match polarities when installing the batteries. Slide the battery cover down toward the bottom of the remote to remove it, then replace it after installing the batteries. The battery cover screw is optional and is not needed to secure the battery cover to the remote.

Optional security cable (sold separately). This remote features an optional security cable attachment. Please refer to the Anderic CBL01 Universal Tether Coiled Security Cable for more information.

Programming Instructions (RRDYS01 & RRDYS01.2)

Note: Please refer to the correct Chart below depending on your model.

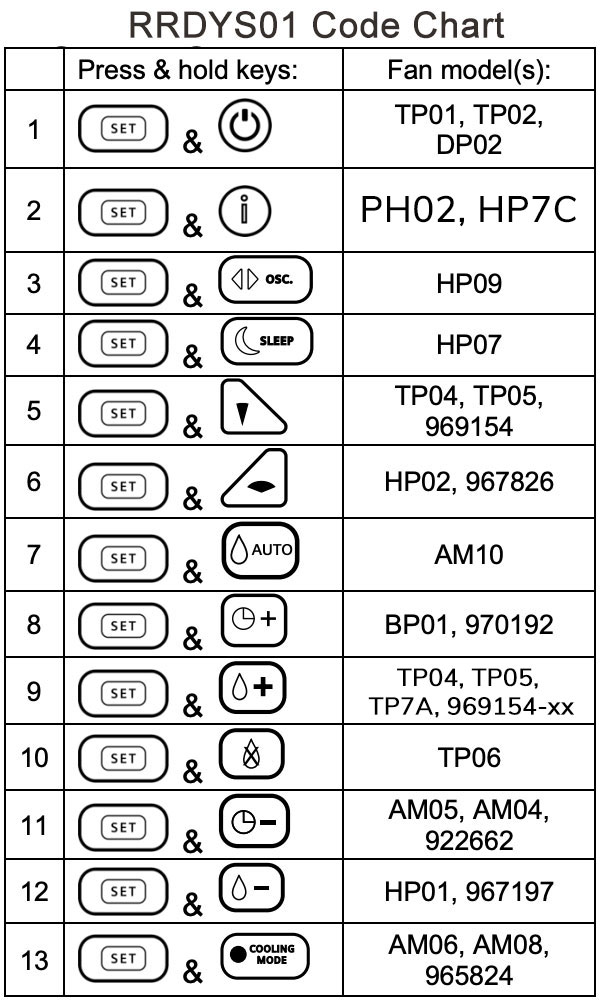

1. Locate your model fan in the programming chart below.
2. Press and hold the two keys shown beside your fan model for about 3 seconds. The indicator light will blink twice and release the keys.

Note: Please refer to the Key Operations Chart to determine which keys should be operated. If your fan does not serve as expected, you can also try the other codes; there may be a better-suited code. The RRDYS01 is a universal remote but may not work on all models of fans.

Learning Instructions (RRDYS01.2)

1. Press and hold the [SET] & 🔴+ keys simultaneously for about 5 seconds; the indicator light will illuminate brighter and remain bright. Release the keys.
2. Point the original remote control head-to-head with the RRDYS01, aligning the top edges at a distance of about 1-2 inches (both remotes should be facing each other).
3. On the RRDYS01.2, Press and release the first Key to learn. The indicator light will now flash slowly.
4. On the original remote, press and hold the Key you want to learn to the corresponding Key previously pressed on the RRDYS01.2. The indicator light will flash three times to confirm, and then remain on, waiting for the next key to learn.
5. Repeat steps 2-4 to learn other keys.
6. Press the [SET] and [FAN-] keys simultaneously to save and exit; otherwise, the remote will exit automatically after 20 seconds.

Additional Setup Keys

Key Operations Chart
