[User Guide] Anderic RRAV300 Remote Control for Yamaha Audio Video Receivers

This article applies to the Anderic RRAV300 Remote Control.

Button Functions

  1. Infrared emitter: Outputs infrared control signals. Aim emitter at the component you want to operate.
  2. Input selector buttons: Select the input source and change the control area.
  3. Sound field program/Numeric buttons: Use to select sound field programs or input numbers.
  4. LEVEL: Selects the effect speaker channel to adjust.
  5. Cursor buttons ^ / v / < / > / SELECT: Use to select and adjust sound field program parameters or SET MENU items.
  6. TEST: Outputs the test tone to adjust the speaker levels.
  7. STANDBY: Sets this unit in standby mode.
  8. SYSTEM POWER: Turns on the power of the unit.
  9. SLEEP: Sets the sleep timer.
  10. 6CH INPUT: Selects the audio source connected to the 6CH INPUT jacks.
  11. CODE SET: Used to set up manufacturer codes.
  12. AMP: Switches control from a previously selected component by using the input selector buttons to this unit.
  13. VOLUME +/-: Increase or decreases the volume level.
  14. MUTE: Mutes the sound. Press again to restore the audio output to the previous volume level.
  15. 6.1/5.1: Switches on or off the Dolby Digital + Matrix 6.1 or DTS + Matrix 6.1 decoder.
  16. STEREO: Switches between normal stereo and DSP effect reproduction. When you select STEREO the unit mixes down all Dolby Digital and DTS signals (except the LFE channel) as well as those 2-channel signals without effect sounds, to the front left and right speakers.
  17. NIGHT: Sets the unit in night listening mode.
  18. SET MENU: Selects the set menu mode.

Using the remote control

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the remote control sensor on the main unit during operation.

Features

In addition to controlling this unit, the remote control can also operate other A/V components made by different manufacturers. You must set up the remote control with the appropriate manufacturer codes to control other components.


Control area:

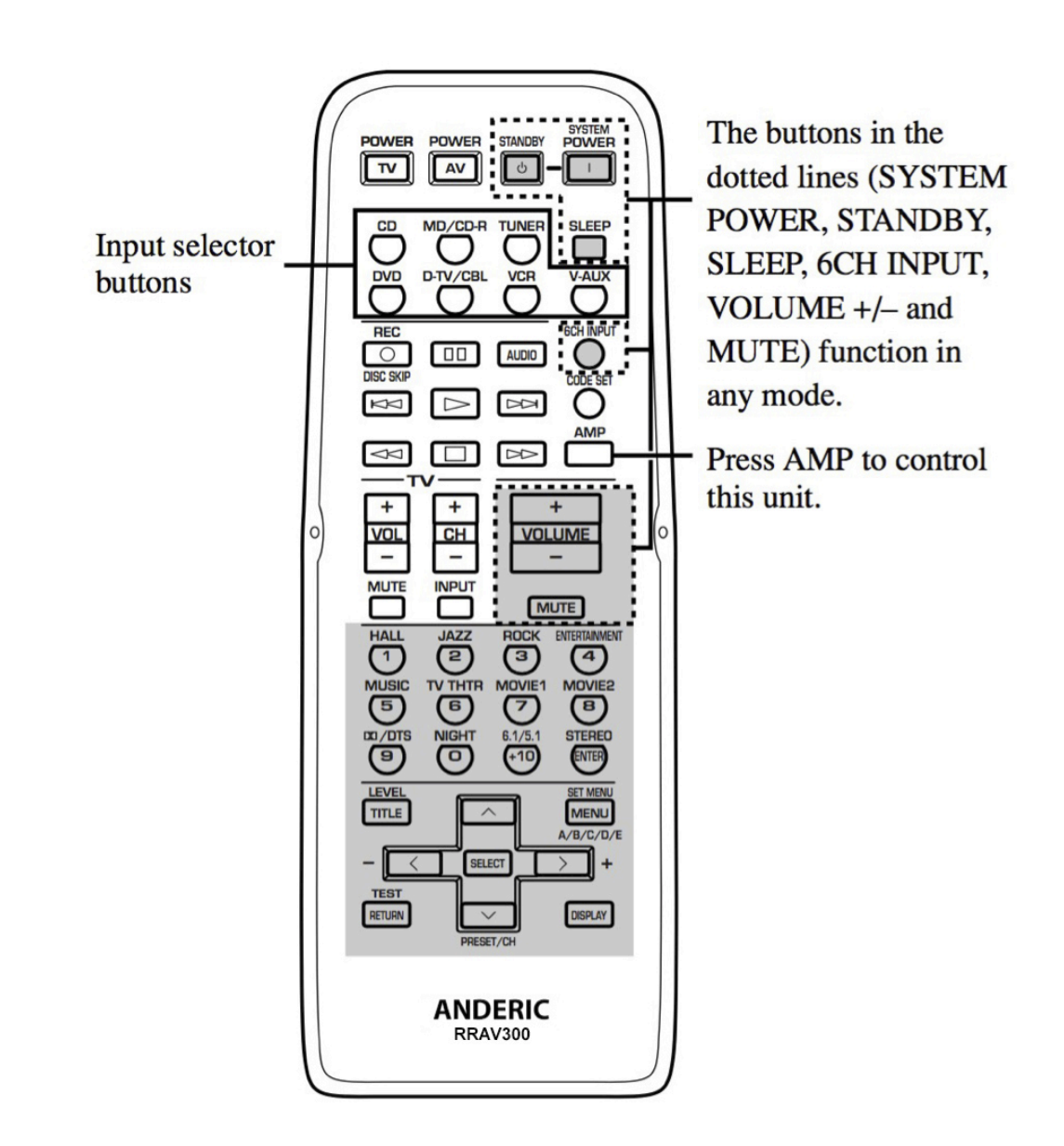

  • Controlling this unit: The shaded areas below can be used to control this unit when the AMP mode is selected. Press AMP to select the AMP mode.

Controlling other components:

  • The shaded areas below can be used to control other components. Each button has a different function depending on the selected components. Select the component you want to control by pressing an input selector button.

Setting Manufacturer codes

You can control other components by setting the appropriate manufacturer codes.

Codes can be set up for each input area. The following table shows the default component and the manufacturer code for each area.

Input area

Component

category

 Manufacturer Code
CD CD Player YAMAHA 199
MD/CD-R CD recorder YAMAHA 499
TUNER Tuner YAMAHA fixed
DVD DVD player YAMAHA 699
D-TV/CBL - - -
V-AUX - - -
VCR - - -
  1. Press and hold CODE SET (Throughout the entire process).

  2.  With CODE SET depressed, press and release an input selector button to

    select the component you want to set up (i.e., CD, MD/CD-R, TUNER, DVD, DTV/CBL, VCR, V-AUX). Note: For programming TV mode, use the “D-TV/CBL” mode key.

  3. With CODE SET still depressed, use the numeric buttons to enter the 3-digit code of your component’s manufacturer. • Refer to CODE LIST at the end of this manual.

  • To reset the code, enter the factory-set code for each component shownin the above table.

If the manufacturer of your component has more than one code, try each of them until you find the correct one.

• You can only assign one manufacturer code to each input selector button.

TV (program under D-TV/CBL mode)

  • Yamaha 299 292
  • Admiral 292 293
  • Aiwa 294 276 283 284
  • Akai 295 296
  • Alba 296
  • AOC 297
  • Bell&Howell 292
  • Bestar 298
  • Blaupunkt 229 222
  • Blue sky 298
  • Brandt 223
  • Brocsonic 297
  • Bush 296
  • Clatronic 298
  • Craig 224
  • Croslex 225
  • Curtis Mathis 297 226
  • Daewoo 297 298 224 227 228
  • Daytron 239
  • Dual 298
  • Emerson 297 224 239 232
  • Ferguson 223 265 266
  • First line 298
  • Funai 277 278
  • Fisher 295 233
  • Fraba 298
  • GE 293 297 234 235 236
  • LG/Goldstar 297 298 239 237
  • Goodmans 296 298 223
  • Grundig 229 238 249
  • Hitachi 297 239 242 243 285
  • ICE 296
  • Irradio 296
  • Itt/Nokia 244 245
  • JC Penny 293 297 234 237

  • JVC 296 246 247

    286

  • Kendo 298
  • KTV 297 239
  • Loewe 298 248
  • LXI 293 297 225 226 233
  • Magnavox 297 225 239
  • Matsui 295
  • Mitsubishi 299 297 259 287
  • NEC 297 252 282
  • Nokia 244 245
  • Nokia Oceanic 245
  • Nordmende 265 266
  • Onwa 296
  • Panasonic 234 235 236 253 288 211
  • Philco 297 225 239
  • Philips 225
  • Pioneer 226 235 254 255 268
  • Portland 297 256
  • Quasar 234 235
  • Radio Shack 299 293 297
  • RCA 293 297 234 256 257 258
  • SABA 223 269 265 266
  • Samsung 297 239 248 262 275
  • Sanyo 295 233 279 272 273 274 212
  • Schneider 296
  • Scott 297
  • Sharp 292 239 232 213
  • Siemens 229
  • Signature 292
  • Sony 263 214
  • Sylvania 297 225
  • Telefunken 269 264 265 266
  • Thomson 223 266
  • Toshiba 292 226 267 215
  • Videch 297 242
  • Wards 297 239 232

VCR Code List

  • VCRYamaha 399 392 393 394
  • Admiral 395
  • Aiwa 396 397 398 329
  • Akai 322 323 324
  • Audio Dynamic 392 394
  • Bell&Howell 393
  • Blaupunkt 325 326
  • Brocsonic 327
  • Bush 322
  • Canon 325 328
  • CGM 396 332
  • Citizen 396
  • Craig 396
  • Curtis Mathis 397 328 333
  • Daewoo 328 334 335
  • DBX 392 394
  • Dimensia 333
  • Emerson 327 334
  • Fisher 393 336
  • Funai 397
  • GE 328 333 387
  • LG/Goldstar 396 388
  • Goodmans 334 337
  • Grundig 332 338
  • Hitachi 325 333 349 342 343
  • Instant Replay 325 328
  • Itt/Nokia 393
  • JC Penny 392 393 394 328 333 349
  • JVC 392 394 344 345 346 347
  • Kendo 396
  • Kenwood 392 394 396
  • Loewe 396 337
  • Luxor 395
  • LXI 393 396 397 336 349
  • Magnavox 325 326 328
  • Marantz 392 394
  • Marta 396
  • Matsui 396
  • Memorex 328 336
  • Minolta 333 349
  • Mitsubishi 399 344 348 359 352 353
  • Multitech 397 348 354
  • NEC 392 394 344 383
  • Nokia 393 395
  • Nokia Oceanic 395
  • Okano 323
  • Olympic 325 328
  • Orion 327
  • Panasonic 325 328 355 378 384 385 386
  • Pentax 333 349
  • Philco 325 328
  • Philips 325 326 328 337 356 357
  • Phonola 337
  • Pioneer 325
  • Quasar 325 328
  • RCA/Proscan 325 326 328 333 335 349 358 369
  • Realistic 393 397 328 336 359 362
  • Samsung 354 358 363 364 365 366
  • Sansui 394
  • Sanyo 393 336 367
  • Schneider 337
  • Scott 399 335 336 348 359 352 354 358
  • Seleco 322
  • Sharp 395 362 382
  • Siemens 393
  • Signature 2000 395 397
  • Sony 368 379 372 373 374 375
  • Sylvania 397 325 326 328
  • Symphonic 397
  • Tandberg 334
  • Tashiro 396
  • Tatung 392 394
  • Teac 392 394 397
  • Technics 325 328
  • Telefunken 376 377
  • Thorn 393 396
  • Toshiba 335 369 389
  • Universum 396 327 376
  • W.WHouse 396
  • Wards 395 396 336 362

DVD Player Code List

  • Yamaha 699 622 623 647
  • Denon 623 624
  • Funai 625
  • Hitachi 626
  • JVC 627
  • Kenwood 628
  • Mitsubishi 629
  • Onkyo 632 633 634
  • Panasonic 623 635
  • Philips 699 647
  • Pioneer 636 637 638
  • RCA 639
  • Samsung 642
  • Sharp 643
  • Sony 644
  • Toshiba 634
  • LG/Goldstar 645
  • Thomson 646

MD Recorder

  • Yamaha 599

CD Player

  • Yamaha 199

CD-Recorder

  • Yamaha 499
