[User Guide] Anderic RRTR227B / 2AQZU-18015 Ceiling Fan Remote Control

This article applies to the Anderic RRTR227B / 2AQZU-18015 Ceiling Fan remote control.

Installing the Batteries

1. Remove the remote control (I) battery cover by pressing firmly on the arrow and sliding the cover off.
2. Install two 1.5V batteries (included).
3. Replace the battery cover on the remote control (I).

Pairing Instructions

1. Remove the remote control (I) battery cover by pressing firmly on the arrow and sliding the cover off.
2. Slide the dip switches (ZZ) in the battery compartment of the remote control to your choice of either up or down. The factory setting is up.
3. Remove the rubber plug (OO) from the receiver by pulling it out.

4. Slide the dip switches (ZZ) on the receiver (H) to the same

   position as set on the remote control (I).

5. Replace the battery cover on the remote control (I).
6. Insert the silicone rubber stopper (OO) into the hole on the receiver (H) to cover the dip switches.

D/O Switch in the battery compartment

Toggling the switch in the battery compartment allows for activation of the dimming functionality. Toggle the switch to side "D" for Dimming Enabled. See below for how to use dimming. Toggle switch to "O" for Dimming Off/Disabled.

Operating the RRTR227B

Power ON/OFF: Press and release the power button to turn the fan and light on or off.

Fan speed: LEDs on the fan speed button will illuminate to the corresponding speed.

• Press and release 1 time: Turn the fan speed to 4.
• Press and release 2 times: turn the fan speed to 3.
• Press and release 3 times: turn the fan speed to 2.
• Press and release 4 times: Turn the fan speed to 1.
• Press and release 5 times: Turn the fan off.

Light ON/OFF/DIM:

• Press and release the button to toggle the light on or off.
• Press and hold the button to activate the dimmer function.

Comfort Breeze: Press the button to enable Comfort Breeze, which will randomly change your fan speed, simulating a relaxing breeze. To cancel this feature, press the fan speed button or the power button.

Correlated Color Temperature (CCT) changing: Push and release the button to cycle through the six color temperature options.

• 2700K (Warm White).
• 3000K (Soft White).
• 3500K (Neutral White).
• 4000K (Bright White).
• 5000K (Daylight).
• 6500K (Daylight Deluxe).

Timer: Allows the fan to turn off after a designated time.

• While the fan is on, pressing the [2H 4H 8H] key once turns on a 2-hour run timer; the indicator light beside the 2H text should illuminate.
• While the fan is on, pressing the [2H 4H 8H] key twice activates a 4-hour run timer; the indicator light beside the '4H' text should illuminate.
• While the fan is on, pressing the [2H 4H 8H] key three times turns on an 8-hour run timer; the indicator light beside the "8H" text should illuminate.

Receiver Wiring

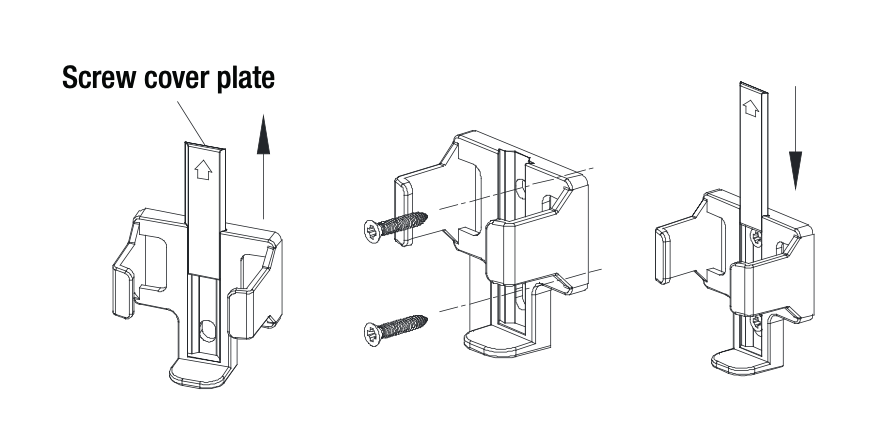

Installing the Wall Mount

1. Slide the screw cover plate up to remove it from the wall cradle.
2. Position the wall cradle in the desired position and attach it to the wall using the included wall cradle screws.
3. Slide the screw cover plate back onto the wall cradle to conceal the screws.

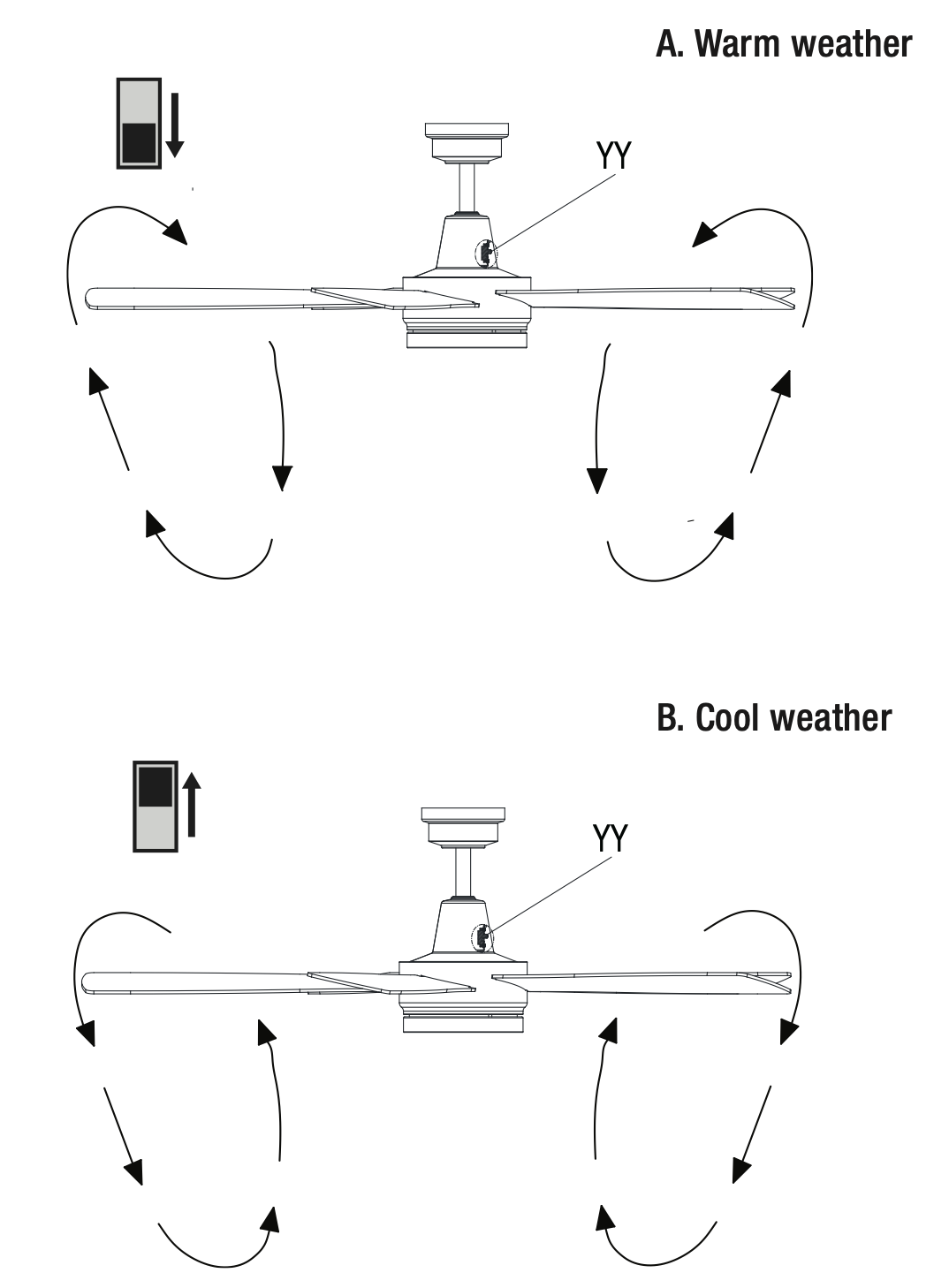

Forward and Reverse the fan direction

Your fan comes with a reversing switch on the motor housing. Just flip the switch to the desired position based on your needs.

If you want the airflow to go in the opposite direction, simply turn off your fan and wait for the blades to stop spinning. Then, find the reversing switch (located underneath the motor collar cover on the switch box on top of the motor housing), slide it to the opposite position, and turn the fan on again. Voilà! The fan blades will now spin in the opposite direction, creating reverse airflow.
