KTN828 | Anderic Universal Air Conditioner Remote Control User Guide

The Anderic KTN828 is compatible with most air conditioners, including mini-splits and window units that require a remote control.

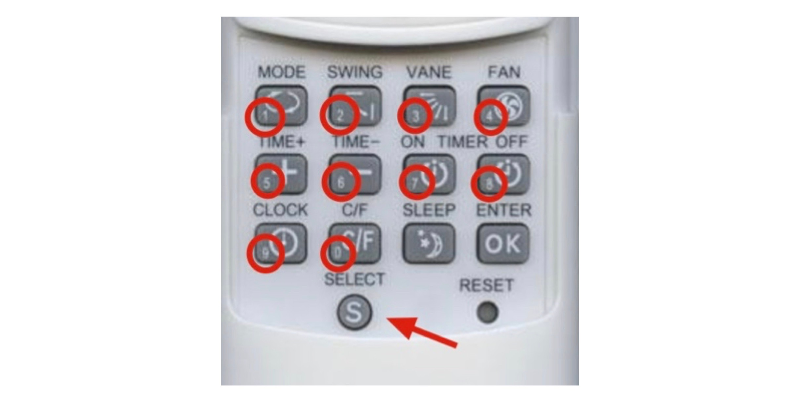

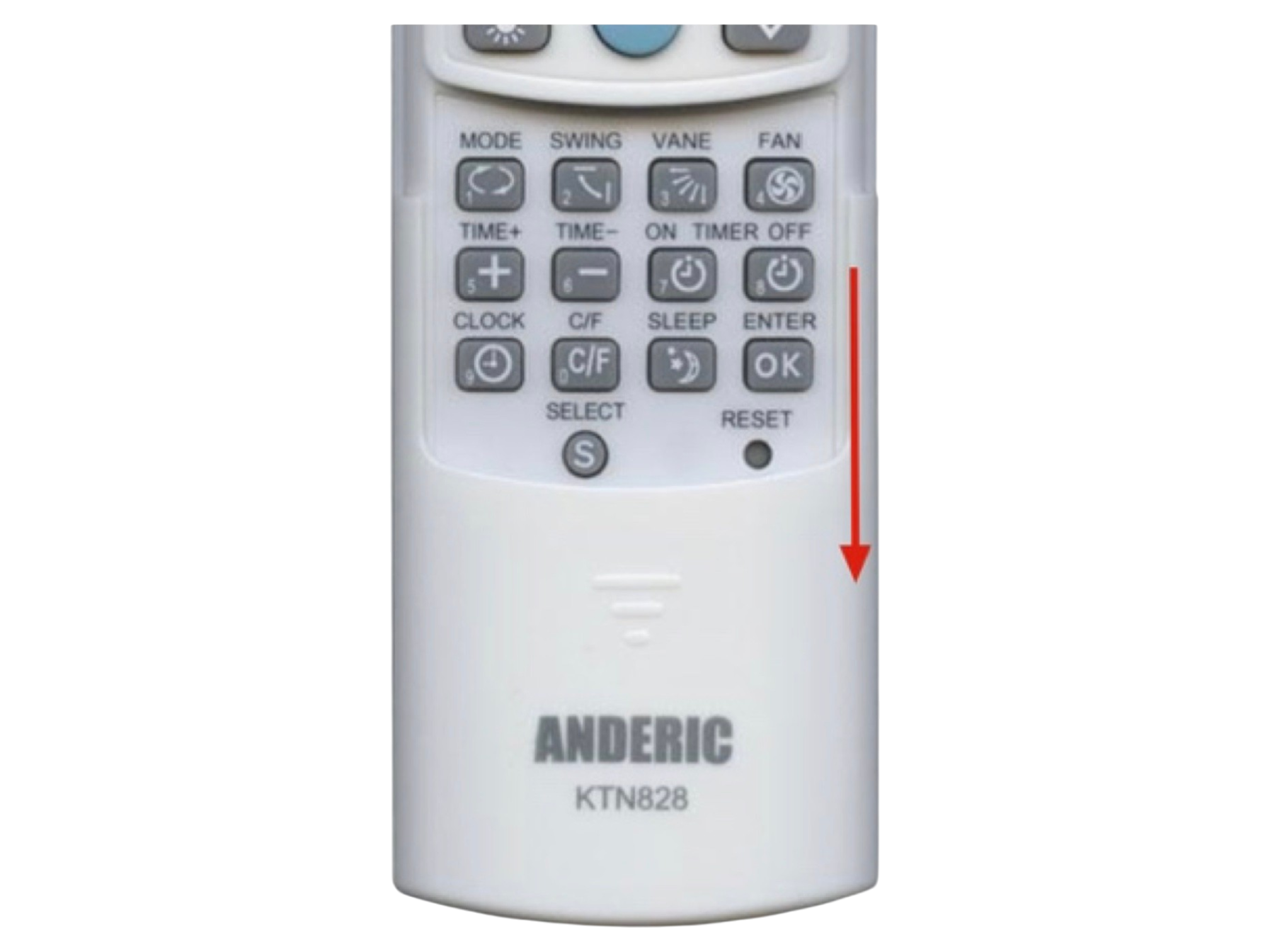

To access the remaining keys, slide down the door panel at the bottom front of the remote. You will find the "SELECT" key for programming. Take note of the numbers in each key's bottom-left corner, as these are used to enter the codes. For programming using code input, refer to the section below.

Installing Batteries

To install batteries, simply slide off the battery cover on the back of the remote. Please make sure to install 2 AAA batteries, taking note of the polarity marks located in the compartment.

Programming using code input

Take note of the codes beside your AC's brand in this manual's code section.
Press the ”SELECT” key, and the code section on the screen will flash.
Enter the first 4-digit code beside your brand from the code section.
1. The Remote should now operate AC; if it does not, please repeat step 2 with the next code from the code section.
2. After you find a working code, try other function keys to see if they work. If you feel that the other keys should be working, you can try a different code to see if there is a better code that works more fully.

Programming using auto-search

If you do not know the brand of your air conditioner, or if your brand is not listed in the code table, please operate as per the following steps:

Aim for the remote control of your air conditioner throughout this process.
Press the “SELECT” key for 5 seconds, then release; the remote control enters auto-search mode. The remote is now sending codes continuously.
When AC responds, immediately press any key on the remote to quickly save the current code.
Try other function keys to see if the code works fully; if not, please repeat the steps above.

Intelligent Cooling & Intelligent Heating

In the summer, press “Intelligent Cooling” only; the air conditioner will cool immediately. In winter, press the “Intelligent Heating” key only; the air conditioner will heat up immediately. In both statuses, the air conditioner will automatically set the heating and cooling to a comfortable temperature, and the fan and swing are automatic. At the same time, the user can adjust the temperature using the “Temp.+/-” keys as needed.

Clock set up

Press the “CLOCK” key, and the clock signal flashes.
Press the “Time +/-” keys to adjust the current time.
Press the “CLOCK” key again to save and exit.

Timer operations

Notes:

If you press the “TMR ON” or “TMR OFF” key twice, the timer will cancel.
After setting the timer feature with the remote, make sure to put the remote in a stationary position in direct line of sight with the AC unit; otherwise, the timer feature will not work.
To view the remaining timer time, press the “TIMER ON” or “TIMER OFF” key.

Timer on

Press the “TMR ON” key, and the time section on the LCD starts flashing.
Press the “TIME +/-” keys to adjust the time you want the AC to turn on automatically.
The time on the LCD will stop flashing after 15 seconds. The setting is complete.

Timer off

Press the “TMR OFF” key, and the time section on the LCD starts flashing.
Press the “TIME +/-” keys to adjust the time at which you want the AC to turn off automatically.
The time on the LCD will stop flashing after 15 seconds. The setting is complete.

Toggling Celsius & Fahrenheit

Press the “C/F” key.

Sleep function

In the summer, press the “SLEEP” key while it is in cool mode; the temperature will be raised by 1ºC per hour for the first 2 hours, then shut off after 8 hours. In the winter, press the “SLEEP” key while in heat mode; the temperature will fall 1ºC per hour in the first 2 hours, and the AC will shut off after 8 hours. After setting the sleep function, make sure the remote is in a stationary position in direct line of sight of the AC unit, or the sleep feature will not work.

Other notes about the KTN828

If the remote is to be stored for a long time and not used, please remove the batteries to prevent corrosion or leakage from batteries going bad.

ANDERIC® is a registered trademark of Dan’s Electronics Etc., Inc.

We found a great instructional video and figured we would share it below.

Codes

Some Notes:

For FRIGIDAIRE (Please use GE (listed as General) or Electrolux codes)

For Hampton Bay (Please use LG codes)

For Lennox (Please use code 0107)

For Kenmore (Please use Electrolux or LG codes)

For Soleus-Air (Please use Changhong or TCL codes)

For Commercial-Cool (Please use LG or Haier codes)

For Danby (Please use Midea codes)

Works Energy Knight

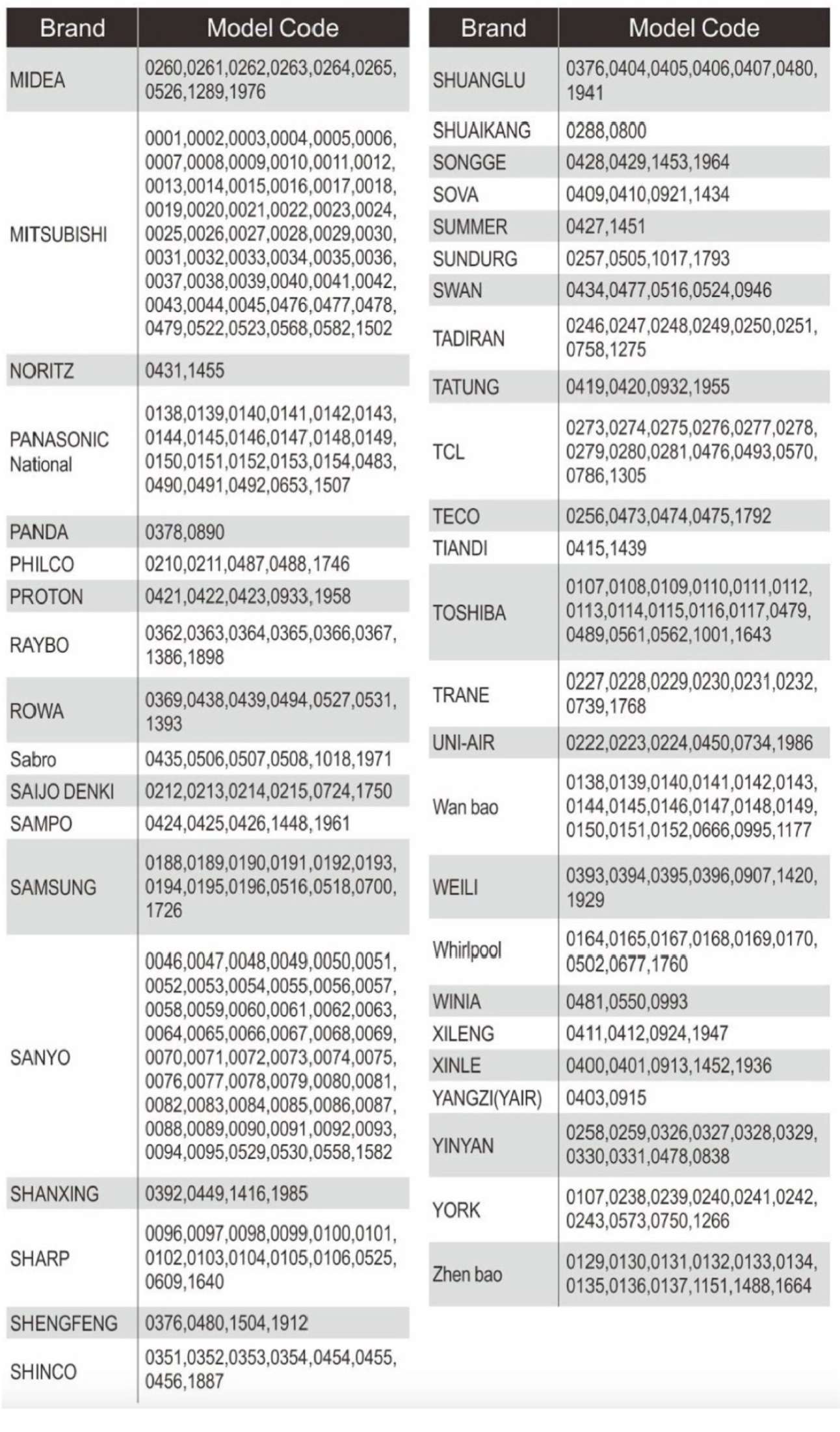

Full Code List

ALPIN: 0252, 0253, 0764, 1277, 1789

AUCMA: 0288, 0289, 0290, 0291, 0292, 0293, 0294, 0295, 0296, 0462, 1313, 1998

AUX: 0297, 0298, 0299, 0300, 0451, 0474, 0475, 0812, 1987

BANSHEN: 0264, 1288, 1800

BOERKA: 0383, 0434, 0436, 0437, 1407, 1972

CARRIER: 0203, 0204, 0205, 0206, 0207, 0208, 0209, 0456, 0457, 0458, 0482, 0483, 0484, 0485, 0486, 0563, 0564, 0565

CHANGHONG: 0301, 0302, 0303, 0304, 0305, 0306, 0307, 0308, 0813, 1843

CHIGAO: 0379, 0380, 0381, 0382, 0489, 0515, 1403, 1916

CHOFU: 0184, 0185, 0186, 0187, 1209, 1723

CHUNLAN: 0345, 0346, 0347, 0348, 0349, 0350, 0450, 0453, 1373

CORONA: 0155, 0156, 0157, 0158, 0159, 0160, 0161, 0162, 0163, 0459, 1180, 1995

CONROWA: 0377, 1401, 1913

CONSUL: 0463, 0975

DEAWOO: 0203, 0204, 0205, 0206, 0207, 0208, 0209, 0406, 0715, 1942

DAIKIN: 0171, 0172, 0173, 0174, 0175, 0176, 0177, 0178, 0179, 0180, 0181, 0182, 0183, 0566, 0577, 0583, 0566, 0577, 0583, 0685, 1707

DOCTOR: 0221, 0449, 1245, 1985

DONGBAO: 0355, 0356, 0357, 0358, 0359, 0360, 0361, 1385, 1891

DONGXINBAO: 0413, 0925, 1654

Electrolux: 0216, 0217, 0218, 0219, 0220, 0569, 1245, 1752

FEDDERS: 0498, 0499, 0528

FRESTECH: 0277, 0519, 0520, 0789

FUJITSU: 0127, 0128, 0129, 0130, 0131, 0132, 0133, 0134, 0135, 0136, 0137, 0464, 0552, 0553, 0554, 1152

FUNAI: 0430, 0481, 1505, 1966

GALANZ: 0371, 0372, 0521, 0883, 1908

General: 0128, 0129, 0130, 0131, 0132, 0133, 0134, 0135, 0136, 0639, 0976, 1161

GUQIAO: 0244, 0291, 1268, 1827

GLEE: 0398, 0399, 0910, 1935

GOLDSTAR: 0201, 0466, 0467, 0468, 0469, 0979, 1737

GREE: 0309, 0310, 0311, 0312, 0313, 0314, 0315, 0316, 0482, 0512, 0513

HAIER: 0266, 0267, 0268, 0269, 0270, 0271, 0272, 0453, 0454, 0455, 0778

HISENSE: 0332, 0333, 0334, 0335, 0517, 0847, 1359, 1868

HITACHI: 0118, 0119, 0120, 0121, 0122, 0123, 0124, 0125, 0126, 0630, 1145

HUABAO: 0336, 0337, 0338, 0339, 0340, 0341, 0342, 0343, 0344, 1360, 1878

HUAKE: 0408, 0920, 1944

HUAMEI: 0402, 0460, 0461, 0462, 0463, 0464, 0465, 1426, 1999

HUALING: 0317, 0318, 0319, 0320, 0321, 0322, 0323, 0324, 0325, 0452, 0964

HUIFENG: 0370, 0882

HUIKANG: 0368, 0441, 0442, 0443, 1392, 1979

HYUNDAI: 0202, 0433, 0480, 1226, 1969

JDC: 0373, 0440, 0952, 1909

JIANGNAN: 0432, 1456

JINDA: 0414, 0926, 1950

JINSONG: 0389, 0390, 0391, 0446, 0447, 0448, 1984

JOHSON: 0245, 0492, 1269, 1516

KANGLI: 0374, 0375, 1399, 1910

KELON: 0282, 0283, 0284, 0285, 0286, 0287, 0473, 0485, 0486, 0487, 0488

KEIMATAIR: 0225, 0226, 0452, 0737, 1761

KONKA: 0397, 0457, 0458, 0459, 1933

LG: 0197, 0198, 0199, 0200, 0514, 1026, 1733

LIANGYU: 0233, 0451, 0745, 1257

LITTLE DUCK: 0015, 0016, 0017, 0018, 0019, 0020, 0530, 1043

LOREN-SEBO: 0255, 0471, 0472, 0767

MACQUAY: 0234, 0235, 0236, 0237, 0465, 0746, 1773

MICOM: 0415, 0927, 1951

MIDEA: 0260, 0261, 0262, 0263, 0264, 0265, 0526, 1289, 1976

MITSUBISHI: 0001, 0002, 0003, 0004, 0005, 0006, 0007, 0008, 0009, 0010, 0011, 0012, 0013, 0014, 0015, 0016, 0017, 0018, 0019, 0020, 0021, 0022, 0023, 0024, 0025, 0026, 0027, 0028, 0029, 0030, 0031, 0032, 0033, 0034, 0035, 0036, 0037, 0038, 0039, 0040, 0041, 0042, 0043, 0044, 0045, 0476, 0477, 0478, 0479, 0522, 0523, 0568, 0582 (Mitsubishi MSZ-GL09NA-U2 and others), 1502

NORITZ: 0431, 1455

PANASONIC National: 0138, 0139, 0140, 0141, 0142, 0143, 0144, 0145, 0146, 0147, 0148, 0149, 0150, 0151, 0152, 0153, 0154, 0483, 0490, 0491, 0492, 0653, 1507

PANDA: 0378, 0890

PHILCO: 0210, 0211, 0487, 0488, 1746

PROTON: 0421, 0422, 0423, 0933, 1958

RAYBO: 0362, 0363, 0364, 0365, 0366, 0367, 1386, 1898

ROWA: 0369, 0438, 0439, 0494, 0527, 0531, 1393

Sabro: 0435, 0506, 0507, 0508, 1018, 1971

SAIJO DENKI: 0212, 0213, 0214, 0215, 0724, 1750

SAMPO: 0424, 0425, 0426, 1448, 1961

SAMSUNG: 0188, 0189, 0190, 0191, 0192, 0193, 0194, 0195, 0196, 0516, 0518, 0700, 1726

SANYO: 0046, 0047, 0048, 0049, 0050, 0051, 0052, 0053, 0054, 0055, 0056, 0057, 0058, 0059, 0060, 0061, 0062, 0063, 0064, 0065, 0066, 0067, 0068, 0069, 0070, 0071, 0072, 0073, 0074, 0075, 0076, 0077, 0078, 0079, 0080, 0081, 0082, 0083, 0084, 0085, 0086, 0087, 0088, 0089, 0090, 0091, 0092, 0093, 0094, 0095, 0529, 0530, 0558, 1582

SHANXING: 0392, 0449, 1416, 1985

SHARP: 0096, 0097, 0098, 0099, 0100, 0101, 0102, 0103, 0104, 0105, 0106, 0525, 0609, 1640

SHENGFENG: 0376, 0480, 1504, 1912

SHINCO: 0351, 0352, 0353, 0354, 0454, 0455, 0456, 1887

SHUANGLU: 0376, 0404, 0405, 0406, 0407, 0480, 1941

SHUAIKANG: 0288, 0800

SONGGE: 0428, 0429, 1453, 1964

SOVA: 0409, 0410, 0921, 1434

SUMMER: 0427, 1451

SUNDURG: 0257, 0505, 1017, 1793

SWAN: 0434, 0477, 0516, 0524, 0946

TADIRAN: 0246, 0247, 0248, 0249, 0250, 0251, 0758, 1275

TATUNG: 0419, 0420, 0932, 1955

TCL: 0273, 0274, 0275, 0276, 0277, 0278, 0279, 0280, 0281, 0476, 0493, 0570, 0786, 1305

TECO: 0256, 0473, 0474, 0475, 1792

TIANDI: 0415, 1439

TOSHIBA: 0107, 0108, 0109, 0110, 0111, 0112, 0113, 0114, 0115, 0116, 0117, 0479, 0489, 0561, 0562, 1001, 1643

TRANE: 0227, 0228, 0229, 0230, 0231, 0232, 0739, 1768

UNI-AIR: 0222, 0223, 0224, 0450, 0734, 1986

Wan bao: 0138, 0139, 0140, 0141, 0142, 0143, 0144, 0145, 0146, 0147, 0148, 0149, 0150, 0151, 0152, 0666, 0995, 1177

WEILI: 0393, 0394, 0395, 0396, 0907, 1420, 1929

Whirlpool: 0164, 0165, 0167, 0168, 0169, 0170, 0502, 0677, 1760

WINIA: 0481, 0550, 0993

XILENG: 0411, 0412, 0924, 1947

XINLE: 0400, 0401, 0913, 1452, 1936

YANGZI (YAIR): 0403, 0915

YINYAN: 0258, 0259, 0326, 0327, 0328, 0329, 0330, 0331, 0478, 0838

YORK: 0107, 0238, 0239, 0240, 0241, 0242, 0243, 0573, 0750, 1266

Zhen bao: 0129, 0130, 0131, 0132, 0133, 0134, 0135, 0136, 0137, 1151, 1488, 1664
