[User Guide] Anderic 375UT (2-button) Universal Garage Door Opener Remote Control
To download the PDF user instructions, click here.
This article applies to the Anderic 375UT (2-button) Universal Garage Door Opener Remote Control.
Compatibility
Works with: Chamberlain, LiftMaster, Craftsman, Genie, Linear, Wayne Dalton, Overhead Door, Stanley, Access Master, Do-It, Gatheron, Link Control, Master Mechanic, Raynor, Steed Craft, True Value
Your remote control can be programmed to operate up to two devices, such as a garage door opener, gate operator, or commercial door operator and has a SMART/LEARN button. Each button on the remote control works independently of the other and must be programmed separately. The images in this article is for references only and your product may look different.
NOTE: Read instructions thoroughly BEFORE beginning. If you are using this product with residential door openers, this porduct must be used only with door openers manufacturered starting January 1, 1993 that use photoelectric sensors located near the bottom of the door track.
Programming

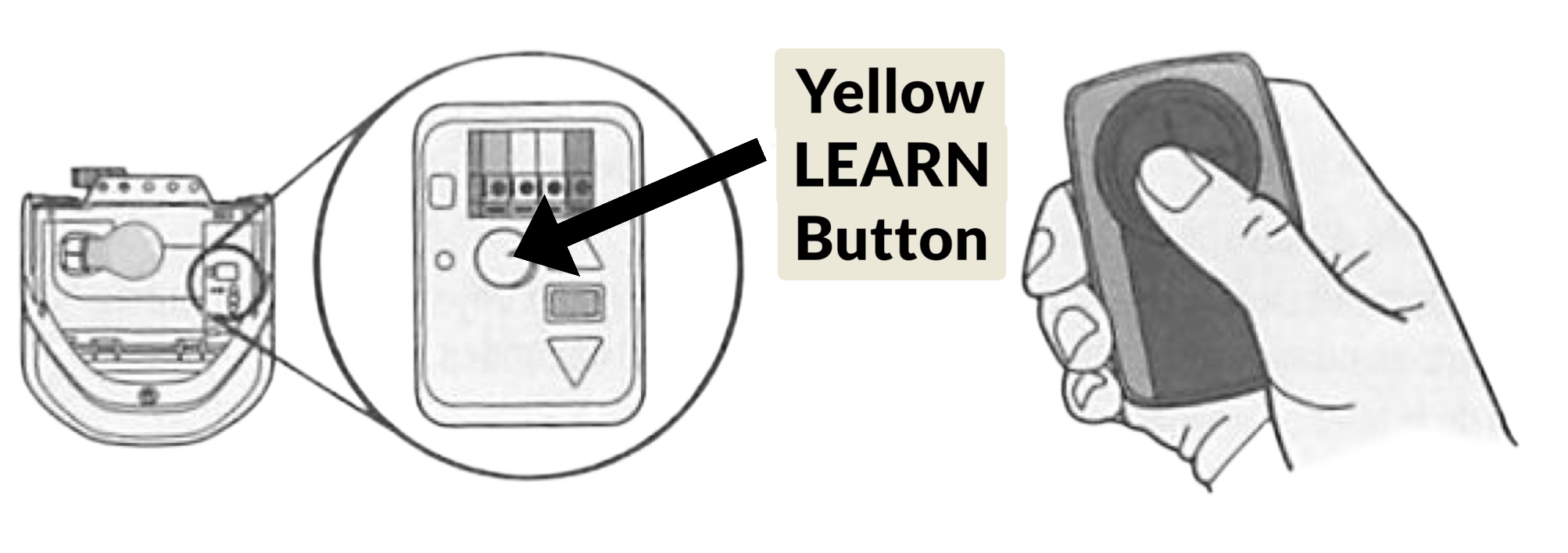

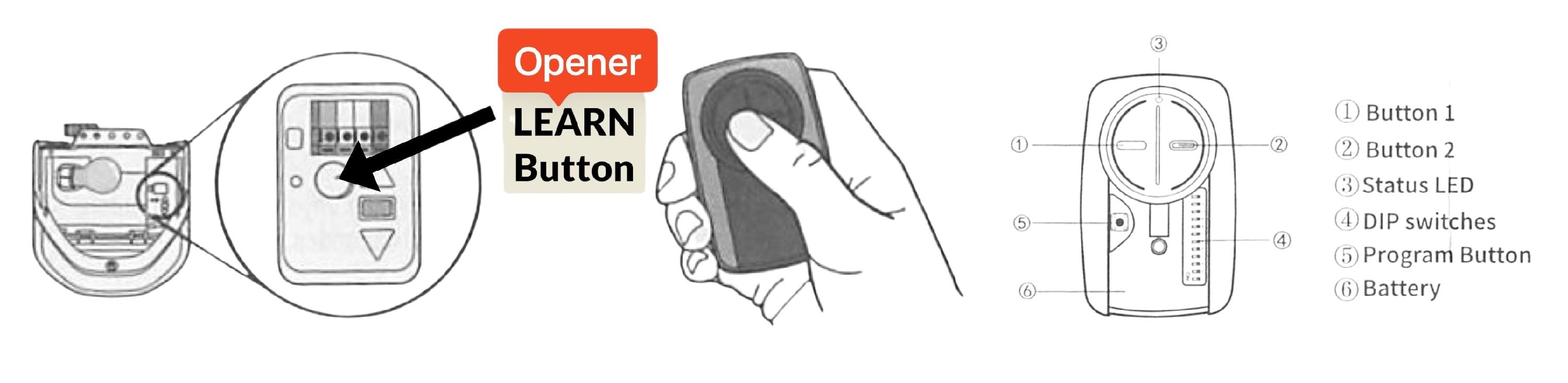

Program to garage door openers with a Yellow 🟡 Learn button
If your remote was previously programmed to another type of opener, see Program to Compatible Garage Door Openers and Operators to reprogram to a yellow LEARN button.
- Start with the garage door closed.
- Press and immediately release the yellow LEARN button. The Learn LED glows steady for 30 seconds. Within 30 seconds...
- Press and hold the button on the remote control that you wish to use.
- Release the button when the garage door opener lights blink or two clicks are heard.
- Test by pressing the button that you programmed. The opener activates.
To program the remote to Chamberlain accessorries, refer to the manual provided with the accessory.

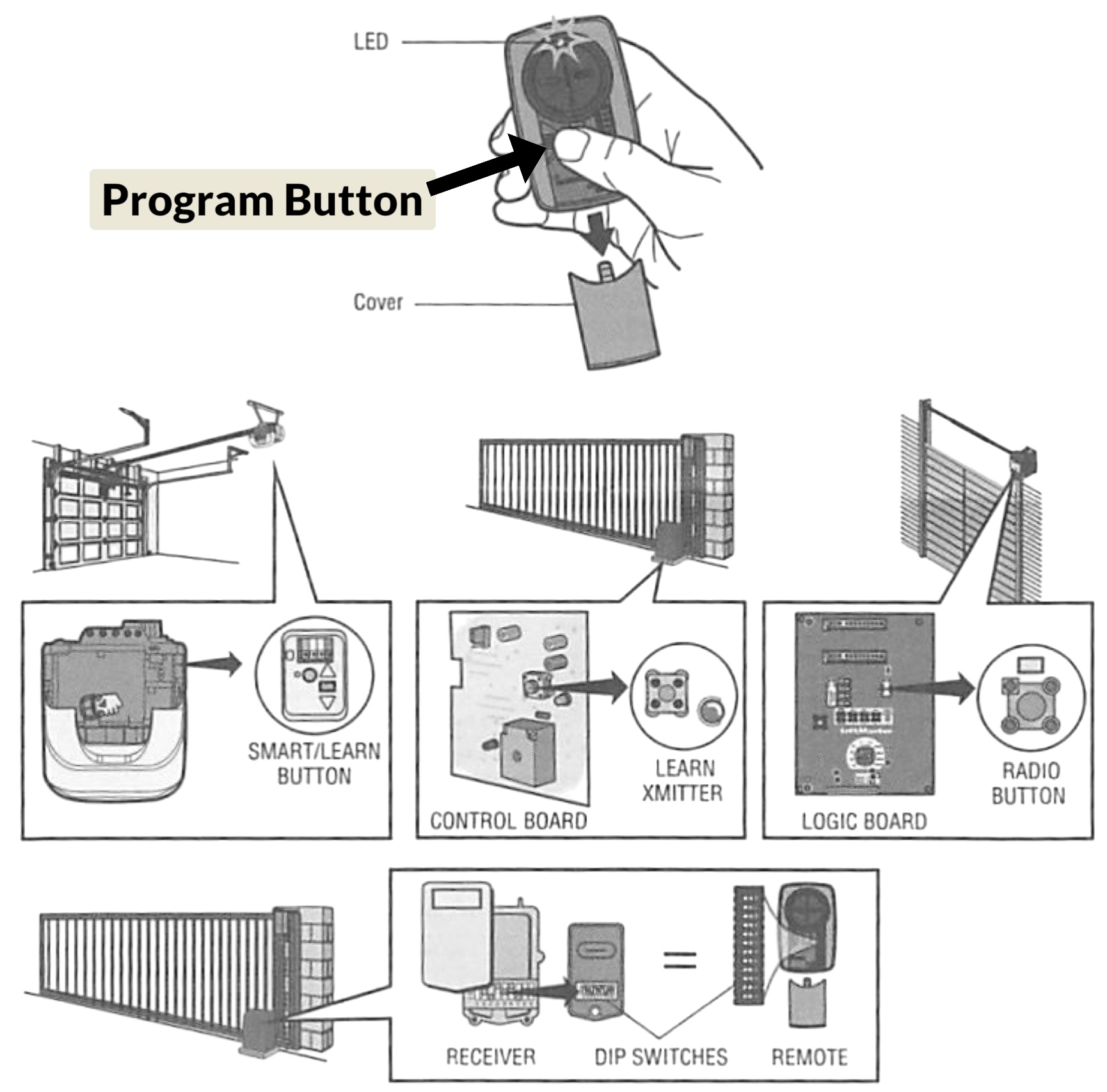

Program to Compatible Garage Door Openers and Operators
- Start with your garage door, gate, or commercial door closed.
- Remove the remote control cover. Press and hold the program button until the LED turns on.
- Press and release the SMART/LEARN button on your product or match the remote control DIP SWITCHES to the existing receiver or existing remote control.
- Select a button to program on the remote control. Press and release the button the specified number of times according to the following list. NOTE: Make sure the LED stops flashing between each press of the button. The garage door opener will respond by clicking, blinking or activating.
- Press the program button on the remote control to save.
- Test by pressing the button you just programmed. The opener activates.
- The SMART/LEARN button or DIP SWITCHES are located either on the product or in an external receiver on or near the product. Consult your product owner's manual to locate the SMART/LEARN button or DIP SWITCHES.
- If you have a 2-position DIP-SWITCH and programming fails, reverse DIP-SWITCHES (OFF to ON and ON to OFF).
Programming Chart: Openers with Learning Buttons
|
Press Button (number of times) |
Brand Group |
Button / System Type |
| 1 time | Linear | MegaCode (1997–Present) – 318MHz |
| 2 times | Chamberlain / LiftMaster / Craftsman | 🔴 Orange/Red (1997–2005) – 390MHz |
| 3 times | Chamberlain / LiftMaster / Craftsman | 🟣 Purple (2005–Present) – 315MHz |
| 4 times | Chamberlain / LiftMaster / Craftsman | 🟢 Green (1993–1996) – 390MHz |
| 5 times | Genie / Overhead Door | Intellicode (2005–Present) – 315MHz |
| 6 times | Genie / Overhead Door | Intellicode (2005–Present) – 390MHz |
| 7 times | Chamberlain / LiftMaster / Craftsman | 🟡 Yellow (2011–Present) – 310/315/390MHz |
Cont. Programming Chart: Openers with DIP Switch Systems
|
Press Button (number of times) |
System Type |
| 8 times | 9 Code Switch (1990–1992) – 390MHz |
| 9 times | 9 Code Switch (1983–1989) – 315MHz |
| 10 times | Genie 12-Code – 390MHz |
| 11 times | Linear 10-Code / EZ Code – 300MHz |
| 12 times | 8 Code Switch – 390MHz |
| 13 time | Stanley Multi-Code – 310MHz |
| 14 times | Genie 9-Code – 390MHz |
| 15 times | Linear Moor-O-Matic – 310MHz |
| 16 times | 7 Code Switch – 390MHz |
| 17 times | Wayne Dalton Rolling Code – 372MHz |
📌 Important Note
Brands like Access Master, Do-It, Gatheron, Link Control, Master Mechanic, Raynor, Steed Craft, and True Value use the same compatibility as Chamberlain / LiftMaster / Craftsman.

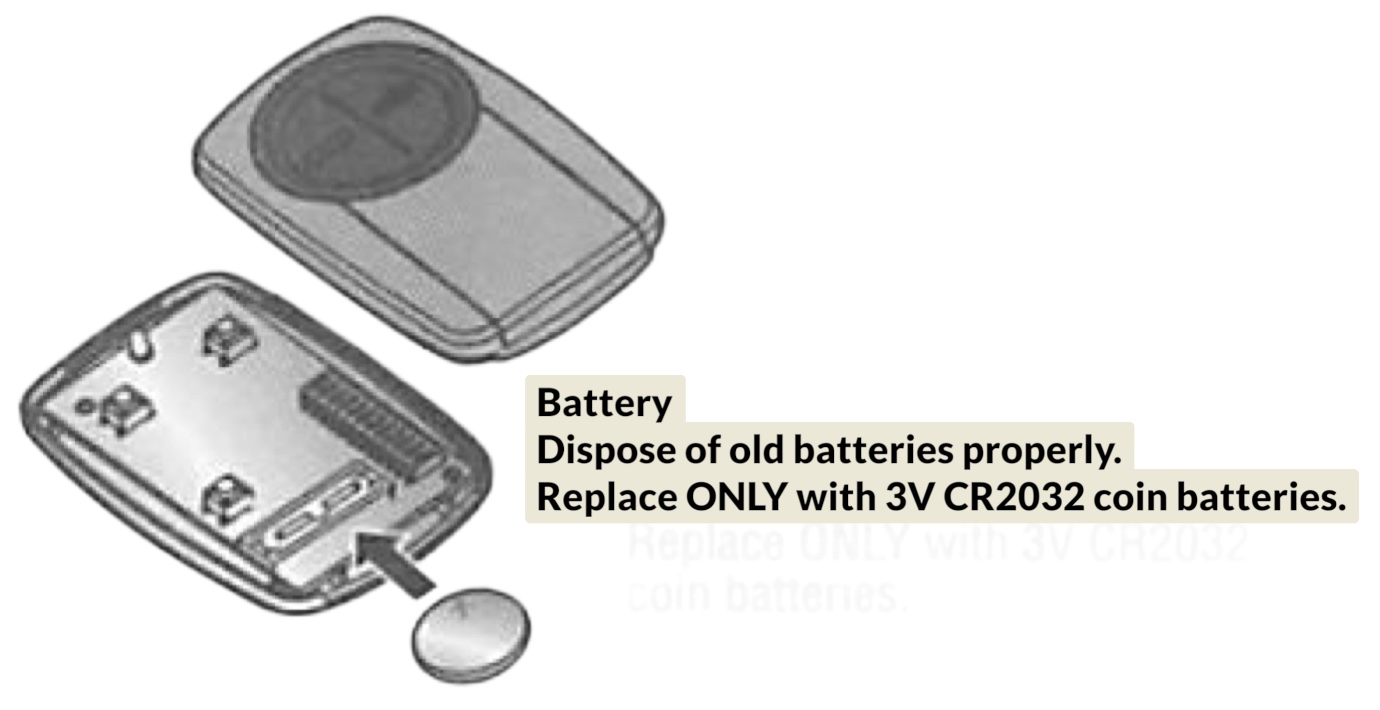

Battery
Warning: This product can expose you to chemicals incluiding lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warning.ca.gov.
Additional Warning: To prevent possible serious injury or death: Never allow small children near batteries. If battery is swallowed, immediately notify a doctor. To reduce risk of fire, explosion or chemical burn: Replace only with 3v CR2032 coin batteries. Do not recharge, disassemble, heat above 212ºF.
Media
Refer to the videos below for assistance with programming the 375UT.
