[User Guide] Anderic CHQ9051T Wired 3-Speed Ceiling Fan Wall Switch Remote Control

This article applies to

Anderic Wired Ceiling Fan Switch Remote Control - CHQ9051T-Wired

Anderic Ceiling Fan Receiver - UC7067RC (UC7067FMRX)

Anderic 3-piece kit - CHQ9051T, UC7067FMRX, RR7079T

Anderic 2-piece kit - CHQ9051T, UC7067FMRX

NOTE: Before you begin please Ensure that your fan and wall switch are powered OFF by the fuse box.

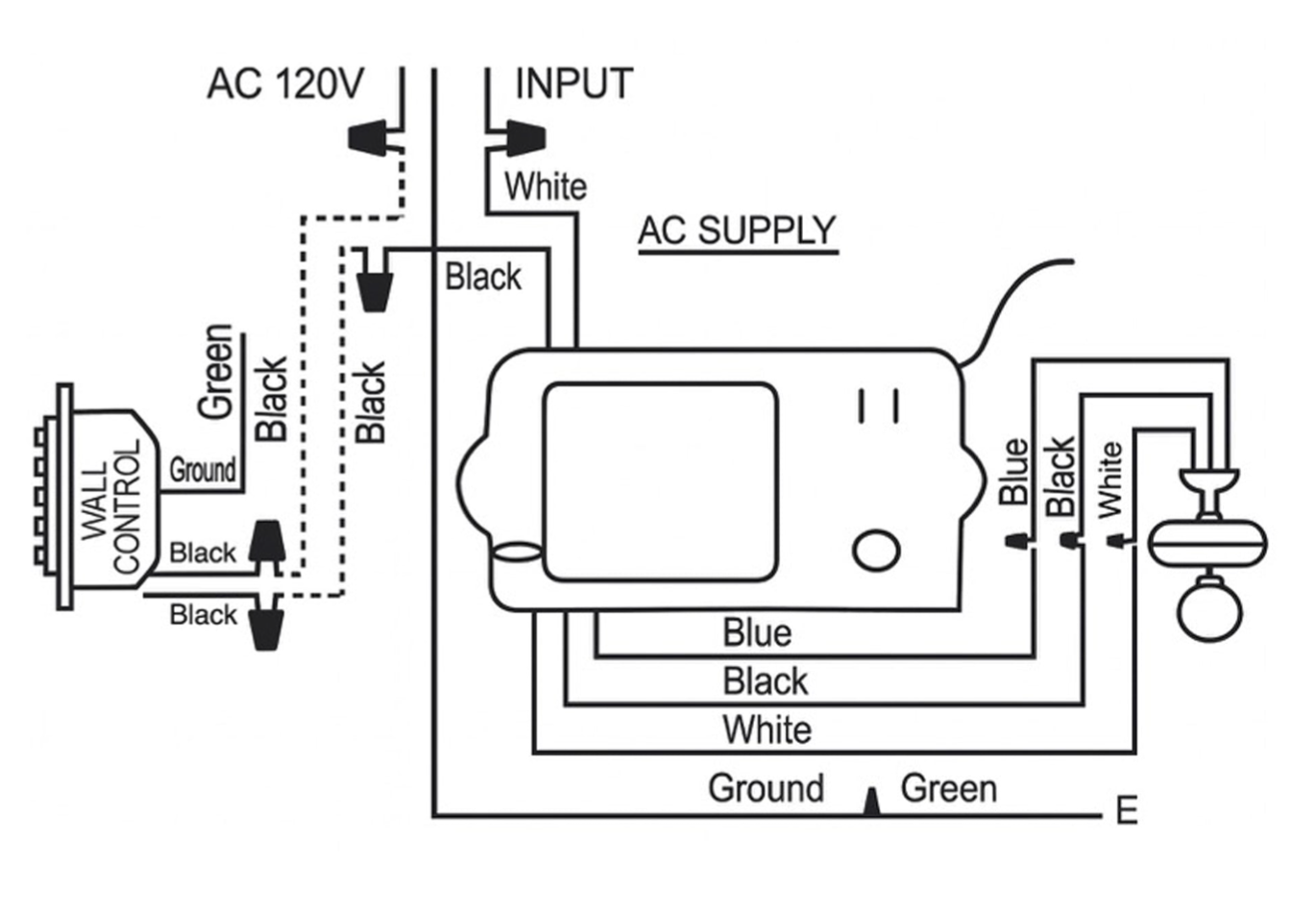

Wall Control Install (AC 120V)

• Black Yellow Tag -> AC Supply (Back wire from receiver)
• Black Blue Tag -> AC Supply (Black wire to receiver input)
• Green -> Ground

Pairing the remote

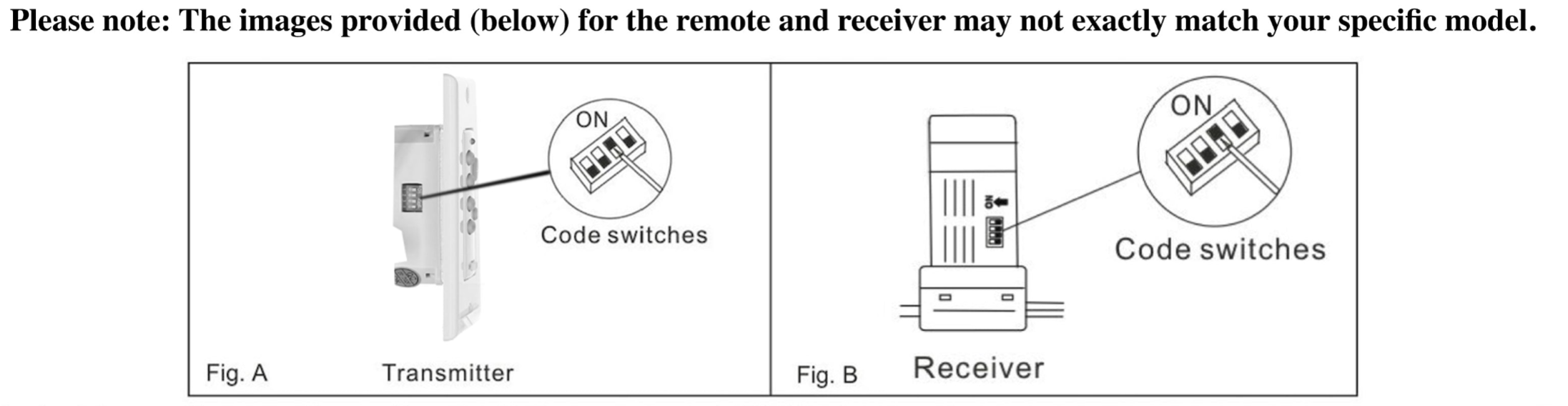

1. Before you secure the remote to the wall with the face plate, locate the dip switches on the left side of the remote (see Fig. A)
2. Set the dip switches to match the pattern on the receiver's dip switches.

Please refer to our 4-dip switch combination chart for guidance.

1. Once you've set the code, you may instal the remote with the face plate.

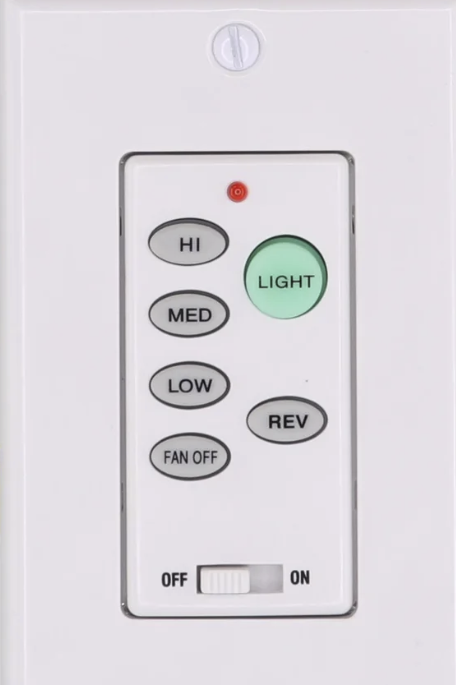

Controls

• Light -> Turns the light on and off (Only works with down lights)
• Dimming -> Press and hold the light button
• Low-> Turns the fan to low speed
• Med -> Turns the fan to medium speed
• Hi -> Turns the fan to high speed
• Reverse -> Turns the fan blades in the opposite direction (if the fan supports)
• The OFF/ON switch is used to cycle power to the remote. If the remote is off, the remote will not operate.

Compatible receivers

compatible with:

• Hampton Bay and Harbor Breeze UC7067RC
• Hampton Bay Fan28R
• Anderic UC7067FMRX
