[User Guide] Anderic RR7096T / RR7096TR / CHQ8BT7096T Operating Guide
This article applies to the Anderic CHQ8BT7096T, RR7096T, RR7096TR ceiling fan remote controls.
Pairing Instructions
Note: This unit features 16 code combinations, which can be selected by using the four dip switches located in the remote’s battery compartment and the receiver.
Compatibility Notes
- If you have the model CHQ8BT7096T Hampton Bay remote with a (RED) light button, then this replacement remote will not work the lights.
- REMOTES:
- RECEIVERS: The RR7087T and RR7087TR remotes are compatible with any 3-speed AC fan equipped with the UC7067FCRX receiver.
Preparing the remote

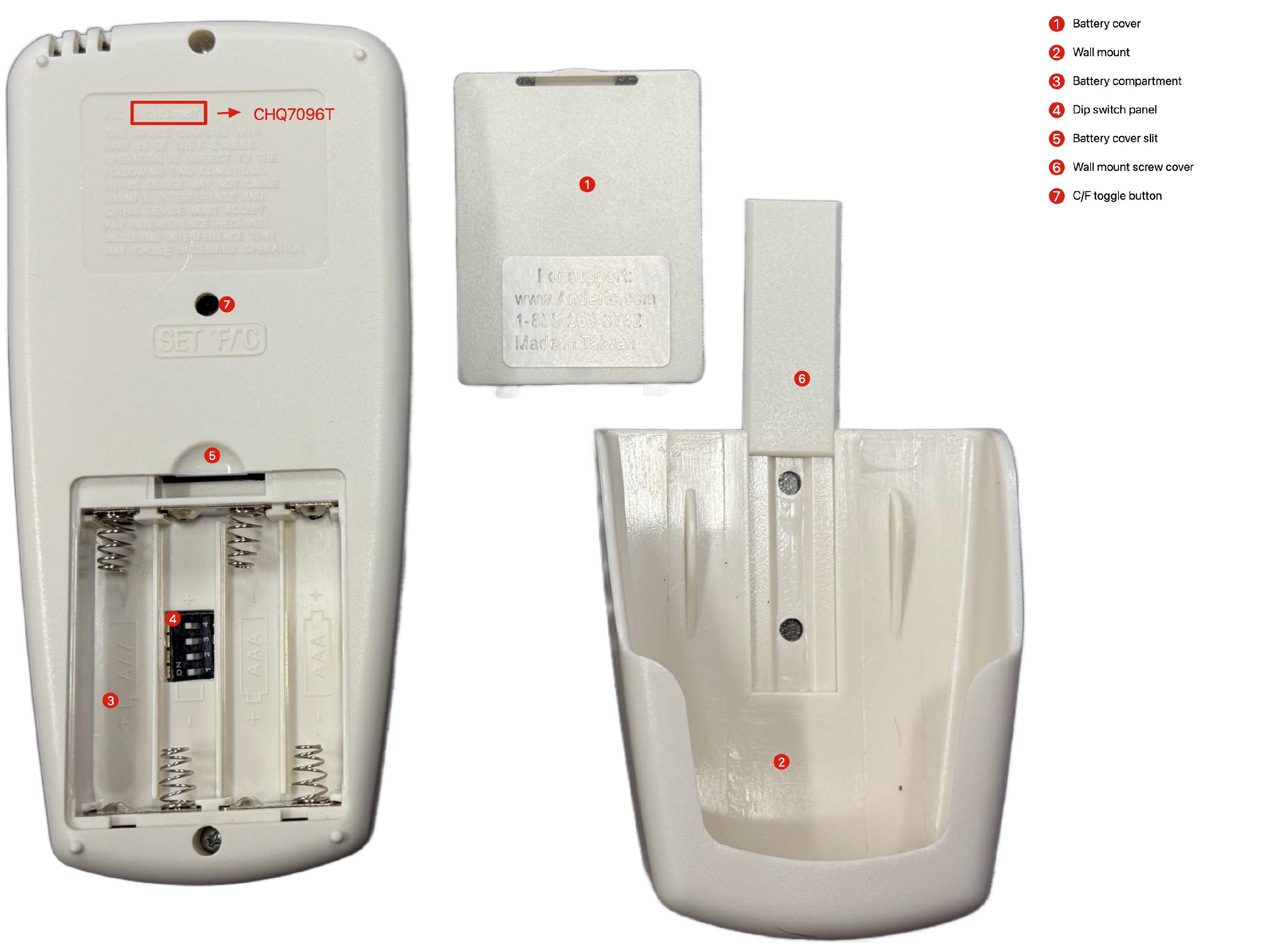

Use the image below for reference.
- To insert the batteries, remove the battery compartment (1) by inserting your fingernail above the battery cover slit (5) and applying pressure downward while prying up, the door should easily come off.
- Make sure that the Dip-switch panel matches your ceiling fan receiver's dip-switch panel pattern. For full instructions, go here.
- Insert a set of four (4) AAA 1.5v batteries into the battery compartment (1), taking note of the direction of polarity.
- Replace the battery cover (1).
Installing the wall mount
Please locate a suitable spot on the wall, usually beside a wall switch.
- Use a screwdriver to screw the provided screws into the wall, ensuring the wall mount (2) is level. The screws should be installed under the wall mount screw cover (6). Remove the wall mount screw cover by sliding the panel up and off. Replace after mounting.
- Hang the remote on the installed wall mount by simply dropping the remote inside the bracket; the remote should face outward.
Fahrenheit to Celsius Toggle
See image above for reference.
Using a pen, insert the pointy end of the pen into the pin-hole (7) located on the back of the remote that reads “F / C,” and quickly press and release the button inside the hole to toggle between settings.

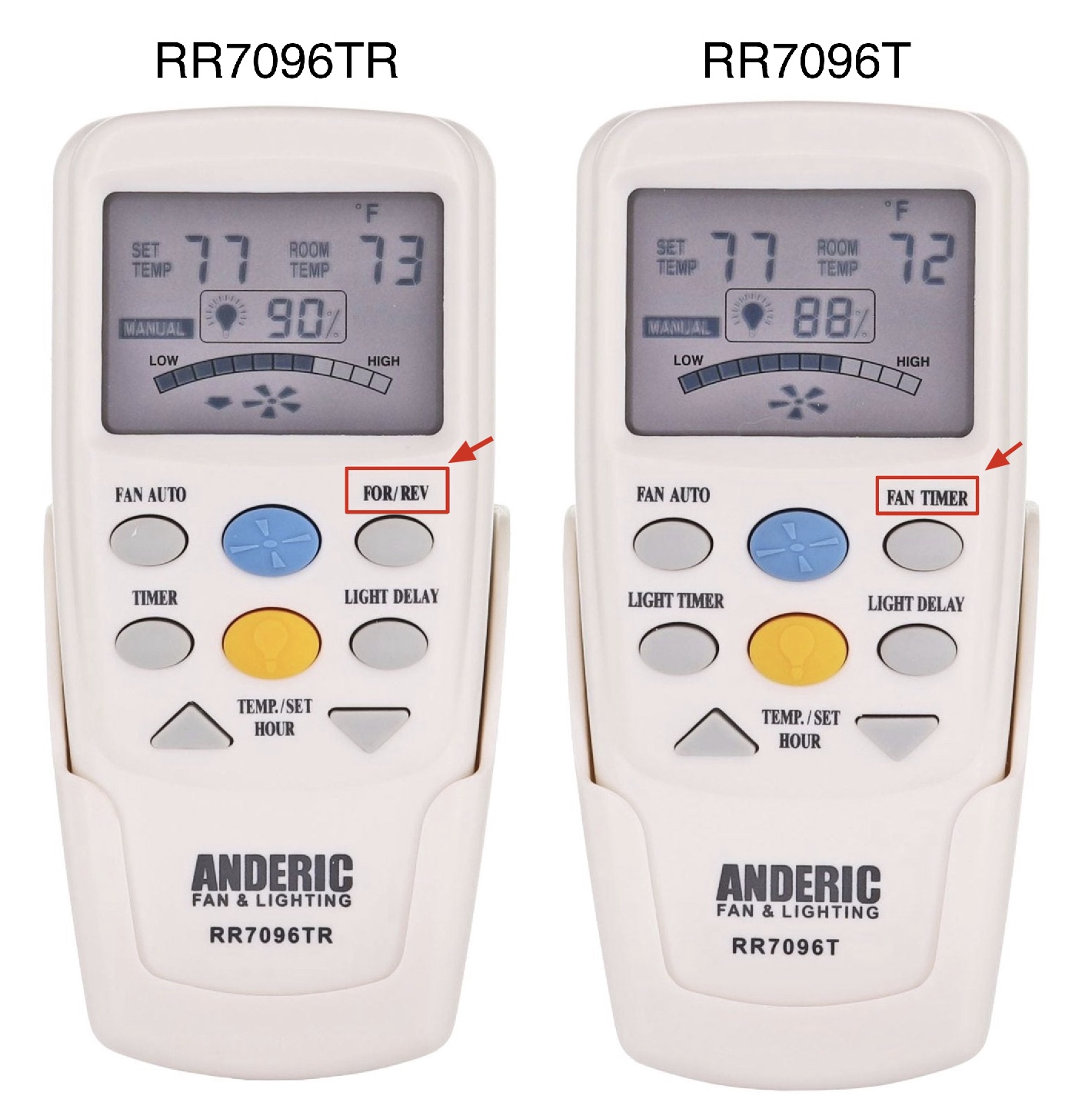

Operating the remote
- BLUE FAN KEY – For fan speed control – with each press cycle, the fan speeds from High -> Medium -> Low -> Off
FAN AUTO KEY – For setting fan speeds to adjust depending on the temperature you set here. Click the FAN AUTO key, then the TEMP UP/DOWN keys to adjust the
desired temperature. The fan will now change the speeds according to temperature.
- Note: The fan will be off if the indoor temperature is lower than the set temperature. If the indoor temperature is 0-2 degrees Celsius warmer than the set temperature: The fan will turn to the low-speed setting. If the indoor temperature is 2-4 degrees Celsius warmer than the set temperature: The fan will turn to the medium-speed setting. If the indoor temperature is greater than 4 degrees Celsius and warmer than the set temperature, the fan will turn to the high-speed setting.
- TIMER KEY (RR7096T remote only) – Set timer option of FAN or LIGHT HOUR ^ KEY – Have time or temp. UP.
- HOUR v KEY – Have a timer or temp. DOWN.
- FAN/REV KEY (RR7096TR remote only) – Will reverse the fan spin direction.
- LIGHT KEY – Toggles light ON/OFF. Press and hold to cycle dimming.
- LIGHT DELAY KEY – Turns the light off automatically after 3 minutes.
