[User Guide] Anderic CHQ9051T Wireless 3-Speed Ceiling Fan Wall Remote Control


Anderic CHQ9051T Wireless 3-Speed Up/Down/Reverse Wall Switch Ceiling Fan Remote Control. This remote is designed to provide convenient control over your ceiling fan, allowing you to adjust fan speed, direction, and light settings easily from the comfort of your wall switch.

Battery Installation and Dip Switch Pairing Instructions

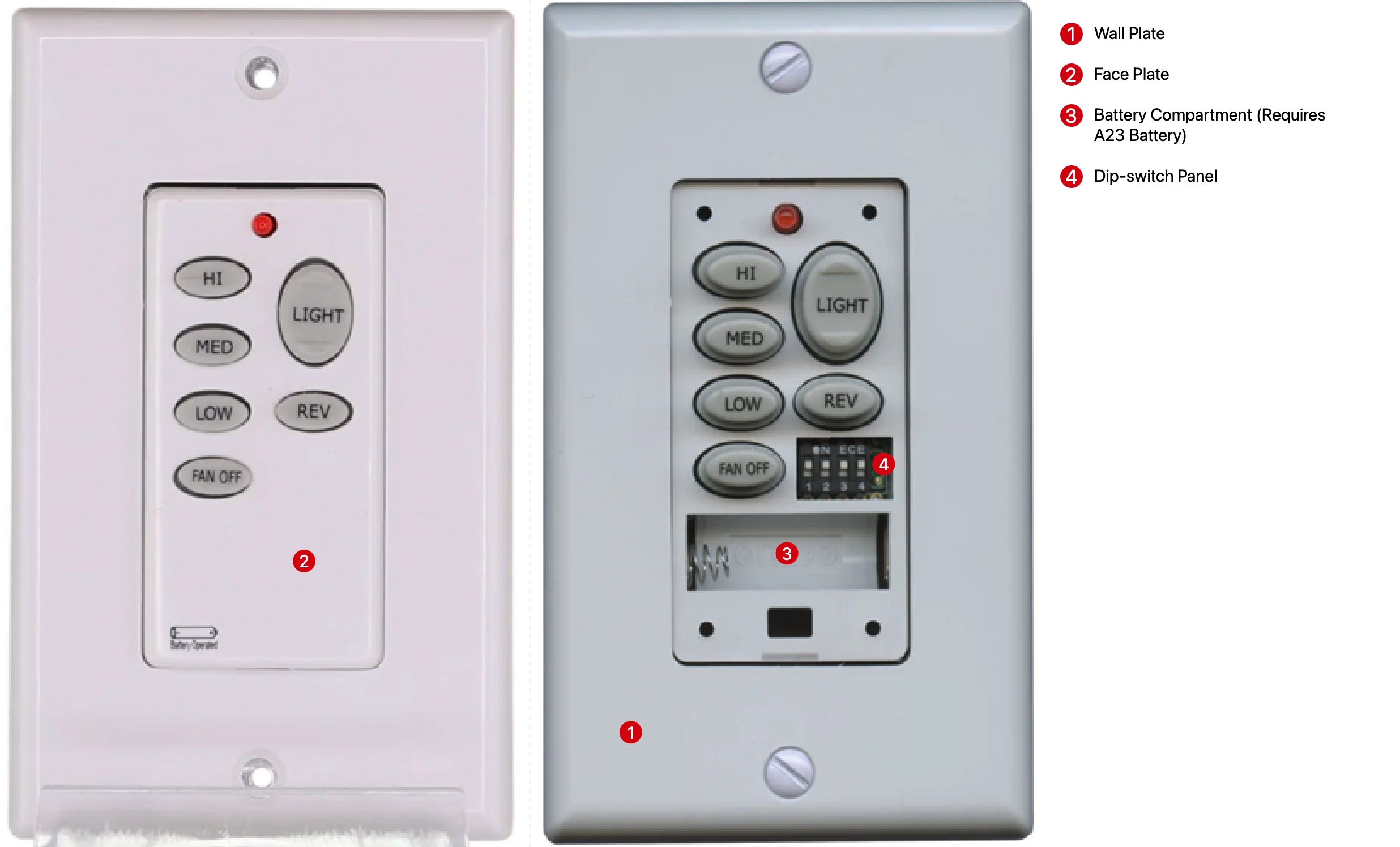

Please refer to the image below for assistance.

  1. Remove the Faceplate (2): Use the notch at the bottom of the unit to remove the faceplate by unsnapping it.
  2. Insert a 23A battery into the battery compartment (3).

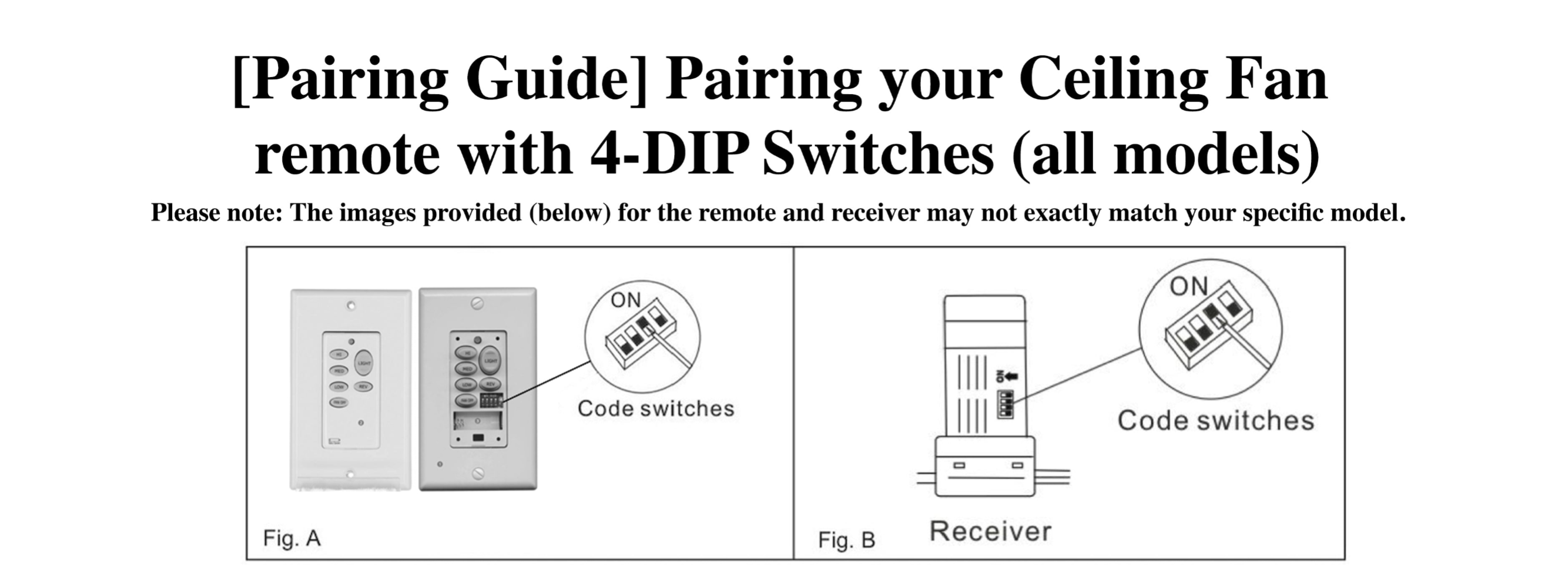

  3. Set the dip switches (3) to match the pattern of the dip switches on the receiver in your fan. If you don't know the dip switch pattern on your fan's receiver, please refer to our 4-DIP Switch Combination Chart for guidance.

Installing the Receiver

If you need assistance with installing the receiver, please refer to this article.
