[User Guide] Anderic UC7078T Ceiling Fan Remote Control - RR7079T, RR7078TR, RR7078TUDL, FAN-HD

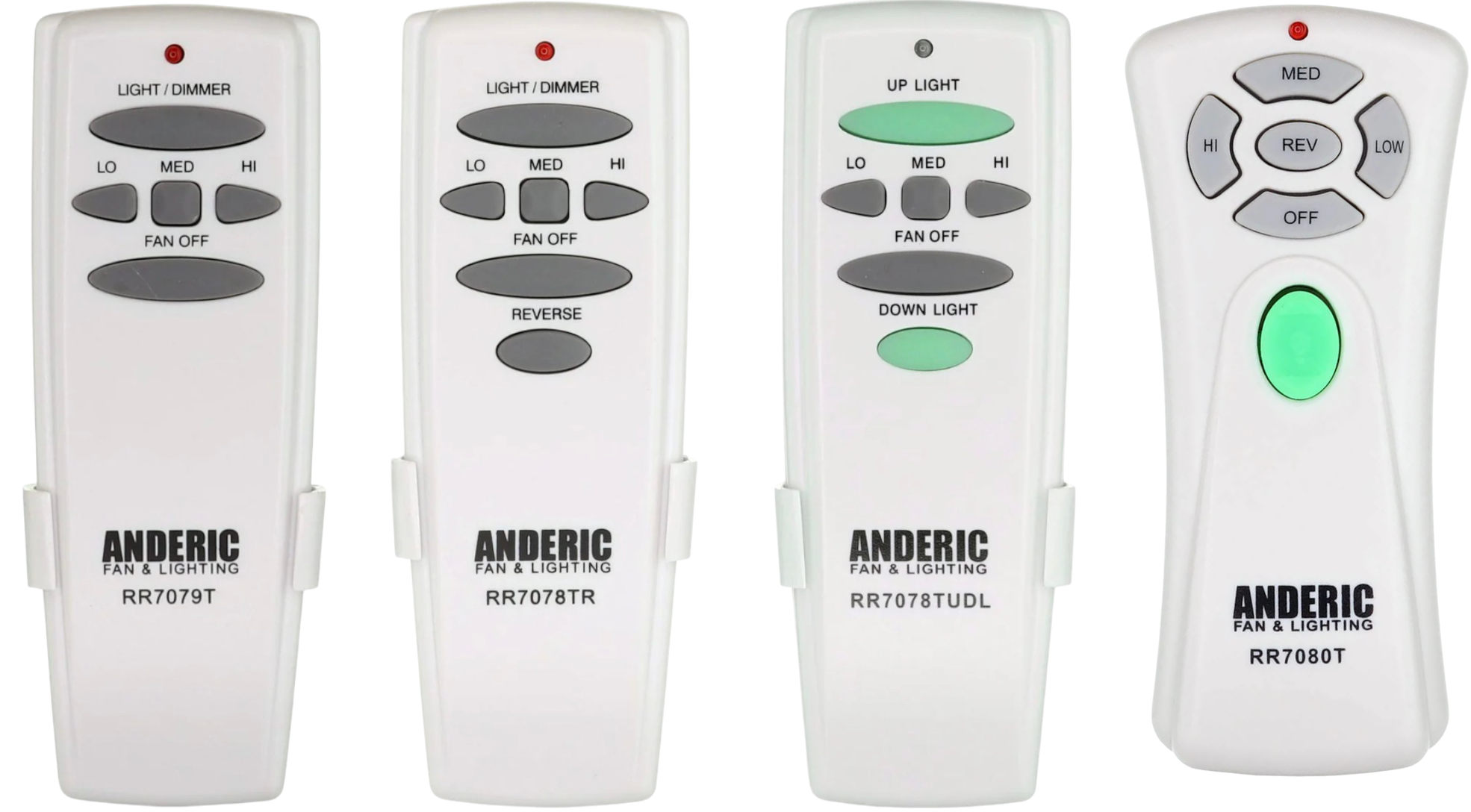

This article applies to the Anderic RR7079T, RR7078TR, RR7078TUDL, and RR7080T ceiling fan remote controls.
Compatibility
These remotes operate on 303.835 (304MHz) frequency with the FCC ID number: CHQ7078T, CHQ7080T1
- The Anderic RR7079T remote control is compatible with any 3-speed fan that has the UC7067FMRX or FAN28R receivers installed.
- The Anderic RR7078TR remote control is compatible with many 3-speed fans that have one of the following receivers installed: UC7067FMRX with a UC7067REVB reversing module, or a similar reversing model, such as FAN2R, UC7058RY, or UC7051R.
- The Anderic RR7078TUDL remote control is compatible with any 3-speed fan that has the UC7067GMRX receiver installed.
- The Anderic RR7080T remote control is compatible with any 3-Speed fan that has the UC7067GMRX receiver installed. For the "REV" (reverse) key to function, your fan must also be equipped with a Reversing module, such as the UC7067-REV-B, or a receiver with the reversing option built in, such as the UC7058GM or UC7051G.
Instructions
- For the remote control pairing Instructions, please go here.
- For installation instructions for the UC7067FMRX ceiling fan receiver, please visit this link.
- For installation instructions with the UC7067REVB reverse module, please refer to this link.
- For installation instructions with the UC7058RY ceiling fan receiver, please visit this link.
- For installation instructions with the FAN2R and UC7051R ceiling fan receivers, please visit this link.
- For installation instructions for the UC7067GMRX ceiling fan receiver, please visit this link.
- For installation instructions for the UC7058GM ceiling fan receiver, please visit this link.
- For installation instructions for the UC7051G ceiling fan receiver, please visit this link.
Button Functions
- LIGHT / DIMMER: Press the light button to toggle the fan's lights on/off. Press and hold the light button to cycle through dimming. Release when your desired brightness is reached.
- UP Light (only applicable with the RR7078TUDL and RR7080T): Press to toggle the upper lights on and off.
Fan Speeds:
Press the respective button to select the desired fan speed.
- LO: Turns the fan on to the lowest speed.
- MED: Turns the fan on to the second-highest speed.
- HI: Turns the fan on to the highest speed.
- FAN OFF: Power the fan completely off.
- REVERSE (only applicable with the RR7078TR and RR7080T): Press to toggle the fan direction forward or reverse.
Removing the battery cover
Note: See reference image below.
- Slide [1] the battery door off by pressing in and down toward the bottom of the remote, removing the cover from the battery compartment [2].
Battery Installation
Note: see reference image below.
- Install a 9-Volt battery, ensuring the polarity matches by aligning the prongs of the battery with the corresponding prong on the battery terminal [2].
- Before you place the battery inside the compartment, please make sure that you follow the pairing instructions, since you will not have access to the dip-switch panel [1] while the battery is inside the battery compartment.
- Then align the battery so that it fits entirely inside the battery compartment.
Installing the wall mount
Note: see the reference image below.
- Find a suitable area on the wall.
- Mark the holes by aligning the wall mount on the wall, using a pencil.
- Install anchors (not provided), if needed, and insert the two screws through the wall mount [2] and into the anchor holes, securing the wall mount to the wall.
